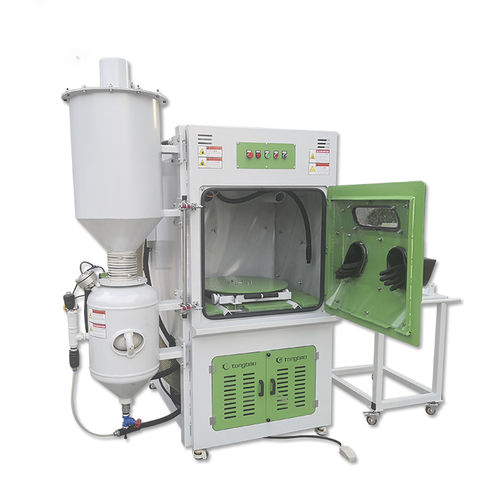

Manual sandblasting machine TB-PN1000

pressuremobile

Direct pressure high pressure sandblasting machine TB-PN1000 Blasting Warehouse Size: 1000*977*892mm Door Size: 890*850mm Weight: 800kgs Power Supply: 380V, 50HZ/customized Separator Motor: 380v, 50hz, 2.2kw Separator Air Volume: 29(m3/min) Compressed Air Source Pressure:5-8Bar(kg/cm2) Compressed Air Source Gas Volume: 0.8-1.5(m3/min) Separator Size: D500*1150mm Dust Removal Power: 3HP Blasting Nozzle Diameter: 8mm Sandblasting Tank Capacity: 60L This machine is mainly suitable for sandblasting of various molds such as precision dewaxing, casting and forging, mold shell cleaning, deep holes and shoe molds, pretreatment of Teflon, rubber embossing, roller coating, and stone, Engraving and processing of hardware, jade, glass, cemented carbide and other high-hardness workpieces. 1. Adopt the pressure type to directly accelerate the sprayed sand material, and the sand material has a deeper impact point. 2. The processing speed is about 3 times faster than that of the cyclone sandblasting machine. 3. The sand material can be automatically recycled, thereby increasing the utilization rate of the sand material.
