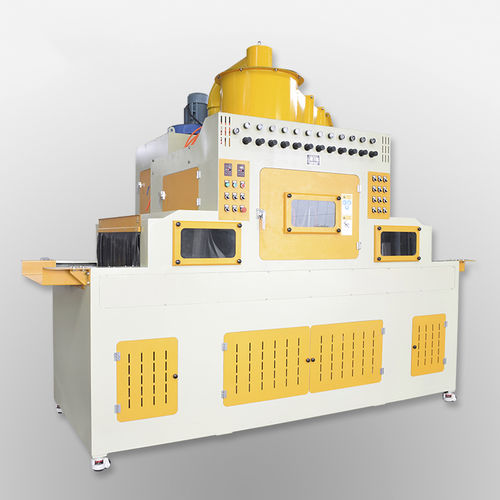

Conveyor automatic sandblasting machine with 12 spray guns Tb-NC1000-12A
Mainframe dimensions (mm): 3700(L)*1700(W)*3250(H)
Sandblasting inlet size (mm): 1000(L)*280(H)
Host quality (KG): 1550
Power supply: 380V, 50HZ
Total power (kW): about 6.6
Compressed air source pressure bar (kg/cm2): 5-8
Compressed air source air volume (m3/min): 9.6—14.4
Compressed air input caliber (inch): 1
Number of spray guns (hands): 12
Spray gun caliber (mm): 8
Spray gun working method: electric swing
Separator fan (KW): 5.5
Separator size (mm): φ650*1400 (H)
Air volume of separator (m3/min): 45
Host lighting: 220V, 12W*2, LED light
Blowing agency: Yes
Dust collector mass (kg): 350
Dust collector size (mm): 1500(L)*1500(W)*2200(H)
The machine can be customized items: the number of spray guns is 10-14, the spray gun caliber is 6/8/10, the dust collector filter cartridge and the cloth bag are optional, the sand return method can be selected by wind or mechanical, and the electrical control can be selected with PLC touch screen.
