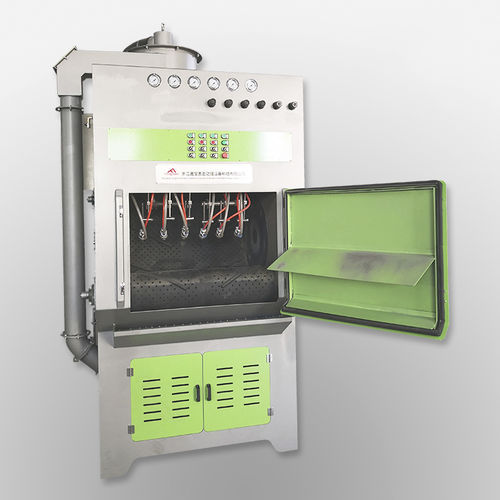

Tracked automatic sandblasting machine
Suitable for automatic sandblasting of a large number of small workpieces, such as heat sinks, powder metallurgy products, zinc aluminum die-casting products, bakelite products, plastic products, screws, gears, acrylic, sockets, wrenches, scissors and other small parts.
Dimensions (mm): 1600(L)*1700(W)*3000(H), 1775(L)*2150(W)*3000(H)
Processing space size (mm): φ600(D)*1000(L), φ1000(D)*1120(L)
Maximum load (kg): 200, 750
Maximum weight of single workpiece (kg): ≤15, ≤30
Number of spray guns (hands): 8, 12
Spray gun working method: electric swing
Power supply: 380V, 50HZ
Total power (kW): about 6.8, about 10
Compressed air source pressure bar (kg/cm2): 5-8
Compressed air source air volume (m3/min): 6.4—9.6, 9.6—14.4
Compressed air input caliber (inch): 1
Separator fan (KW): 5.5, 7.5
Dust removal power (hp): 7, 10
Separator size (mm): φ500*858 (H)
Air volume of separator (m3/min): 45, 60
Product quality (kg): 1300, 2000
Door opening method: front opening pneumatic / front opening manual
