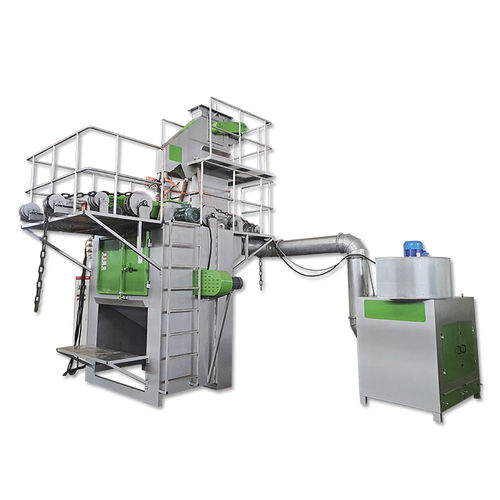

Overhead conveyor shot blasting machine TB-SQ236-2P

for chainscontinuousautomatic

Chain dedicated continuous automatic shot blasting machine TB-SQ236-2P Chain shot blasting machine is suitable for shot blasting, rust removal and deburring of industrial chains. 1. Working object: industrial lifting chain φ5-18mm 2. Processing method: continuous 3. The number of processing jobs: two processing at the same time 4. Processing work conveying speed: 0.5~3.0m/min frequency conversion speed regulation 5. Workpiece conveying motor: 1.5kw 6. Shot blasting machine: Speed: 2930r/min Impeller diameter: φ400mm Shot blasting volume: 190kg/min×2 sets Shot blasting machine power: 7.5kW×2 sets 7. Flip the workpiece: Flip method: swing left and right 8. Projectile sand shot material: Sand shot diameter: 0.2~1.5mm First input: 600kg 9. Hoist: Lifting capacity: 30t/h Pitch: 200mm Lifting motor: 3.7kw 10. Separator Separation capacity: 30t/h 11. Dust collector Dust removal method: cartridge type Dust collection air volume: 4012~7419m3/h Dust collecting fan: 5.5kw Dust collection efficiency: 99.9% Dust collection emission concentration: <96mmg Air volume for back blowing dust cleaning: 1m3/min Air pressure for back blowing dust cleaning: 0.5~0.8mpa 12. Equipment noise: <93 decibels (JB/T835 13. Total installed capacity: about 30kW 14. Machine dimensions (L×W×H) 4800mm×4200mm×4000mm 15.Total weight of the machine: about 5500kg
