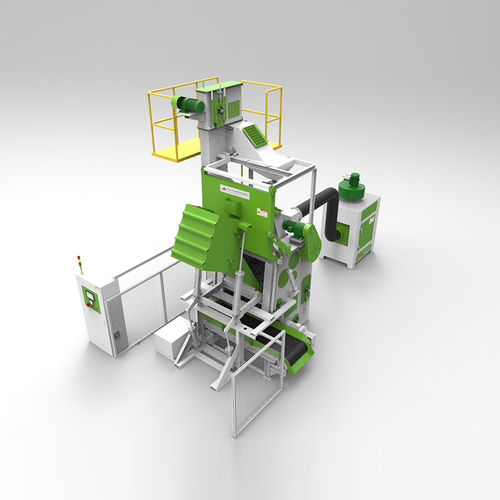

Belt shot blasting machine TB-NAW180

rotary drumfor bulk materialsfor metal

Wire rope type automatic loading and unloading crawler rubber belt shot blasting machine Rubber Belt Tumble blast machines Built for manufacturers who need efficient, reliable,high- production blasting. TONGBAO offers super-duty tumble belt cabinets for high-production wheel blasting on heavy parts and large batches up to 1000kg. Available in capacities of 30,100,180,350,550litre the standard tumble belt cabinet that can be positioned to suit the part load. An optional High power blast system lets you dramatically reduce cleaning times or increase peening intensity. Fill capacity (l) 30 100 180 350 350 550 Belt dimensions ⌀x width in mm 400 x 620 600 x 900 800 x 900 1000 x 1120 1000 x 1350 1200 x 1200 Max. single work piece weight (kg) 10 15 25 Max. weight of load (kg) 100 200 400 600 800 1000 Work piece transport Optional Turbine (numbe x kW) 1 x 4 1 x 5,5 1 x 7,5 1 x 11 1 x 15 Loader Optional Filter unit TB-DC2/2 TB-DC2/3 TB-DC2/4 TB-DC3/3 TB-DC3/4
