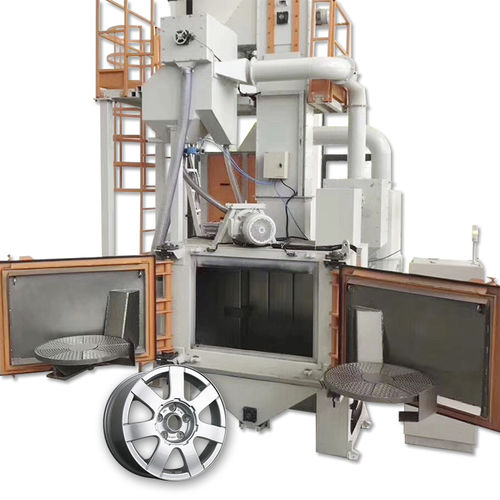

Double turntable shot blasting machine is a kind of shot blasting and strengthening equipment for cleaning automobile wheels, strengthening forgings, castings and gears. It can apply shot blasting to the original wheel hub and casting surface to remove the coating, rust layer, welding slag and oxide scale on it, so that it can obtain a uniform metallic luster, so as to improve the surface coating quality and resistance. Fatigue strength.
Cleaning room size Mm
≈1300*1230*800
Clean the size of the workpiece Mm
¢600*H250
Rotary turntable Deadweight Kg
400
Diameter mm
¢800*2
Shot blasting machine
Shot blasting amount Kg/min
2*180
Power Kw
7.5*2
Lifting amount of hoist T/h
15
Separation amount of separator T/h
15
The first load of projectile Kg
500
Ventilation M/h
2800
Dimensions Mm
≈3450*3650*4500
Power (excluding dust removal) kw
18.7
