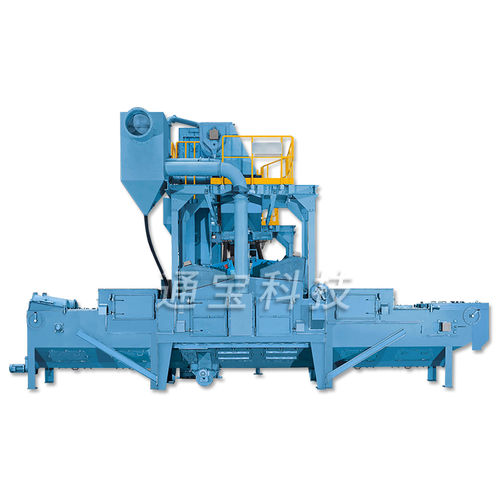

Roller conveyor shot blasting machine TB-CA450

for profilesfor tubesfor marble

Spring strengthening shot blasting machine Spring surface treatment equipment Spring-strengthened shot blasting machine is a kind of equipment for spring surface treatment. Shot blasting is a specially designed process for improving the fatigue strength of components that are subjected to alternating stress. The impact of the high-speed projectile projectile on the surface of the spring produces a cyclic plastic strain layer on the surface, which leads to favorable changes in the microstructure of the surface of the spring and introduces the residual compressive stress field into the surface, thereby improving the fatigue fracture and stress of the spring. Corrosion and fracture resistance to improve the reliability and durability of the spring. Maximum product range Cm ￠22*L45 Minimum product range Cm ￠8*L20 Processing efficiency Second/piece 5～12 Shot blasting machine Shot blasting amount Kg/min 2*500 power Kw 30*2 Material of blast chamber Mild steel Material of Protective lining Manganese/Cast alloy Lifting amount of hoist T/h 80 Separation amount of separator T/h 80 Projectile loading for the first time Kg 1500 Ventilation M/h 11000 Dimensions (approximately) Mm 12000*5100*5000 Total power (approximately) kw 97
