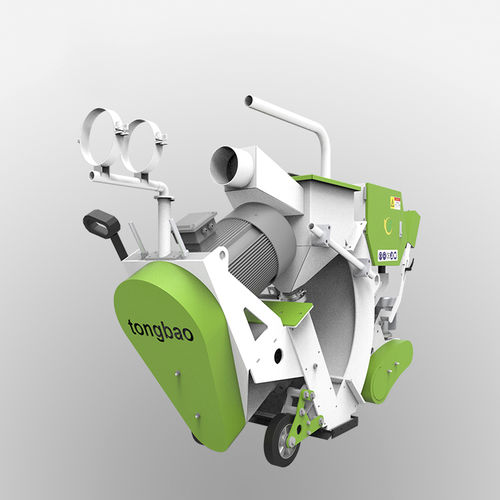

Manual shot blasting machine TB-MS200

for concretegroundfor surface cleaning

Mobile single-head shot blasting machine (road cleaning machine) Tongbao mobile shot blasting cleaning systems is a cost-effective and environmentally friendly method for preparing concrete and steel surfaces. This labor and time-saving process strips, cleans and proles simultaneously. It leaves the surface immediately ready for the application of coatings or overlays—eliminating drying time and costly disposal procedures associated with other surface preparation methods. Arbeitsbreite: 200mm 250mm 300mm 350mm Production Capacity: 40㎡/hr. 90㎡/hr. 110㎡/hr. 160㎡/hr. Travel Speed: 0.5-23m/min 0-26m/min Voltage: 电压： 220 V/380V, 1ø/3ø, 50 Hz 380V/460V, 3ø, 50 Hz/60 Hz Blast Motor: 3kw 7.5kw 11kw 15kw Amperage: 13A 15A /18.5A 21A /23.5A 29.4A /33.5A Matching Minimum Generator: 15kw 30kw 40kw 60kw Weight: 160kg 320kg 335kg 385kg Dimensions尺寸 (L x W x H): 1320x 410 x 1400 1600x 435 x 1020 1600x 435 x 1050 2010x 590 x 1100 Dust Collector: BDC-44 Air capacity: 7,5 m3/min (min) 28 m3/min (min) Dust Hose Connection: ø 76mm ø 100mm ø 130mm
