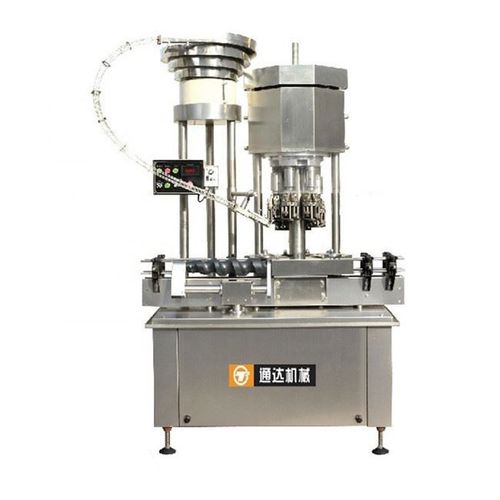

Bottle screw capping machine

multi-headin-lineautomatic

1. The main body of the Bottle Screw Capping Machine is made of high-quality 304 stainless steel, and the lifting aluminum block is anodized, which is strong and durable. 2. The lifting seat can be adjusted up and down through the screw, and there is a position indicator to indicate the current position to avoid adjustment errors of various bottles 3. This machine uses a quick-release lock cap mold, which can easily replace bottle caps of different sizes. 4. Bottle Screw Capping Machine adopts a straight line and turntable design, which can be compatible with a variety of bottle types (including special-shaped bottles), truly achieving multiple uses in one machine. 5. Intermittent astrolabe positioning, if there is no bottle or the positioning is incorrect, the operation will be suspended. 6. The head of the lock cover is equipped with a buffer device, which can further reduce the damage rate. 1)Cover slot The glass bottle is smoothly fed into the dial by the conveyor belt. The vibrating plate sends the aluminum cover to the wear station through the hopper and crawler. The bottle dial is used to put the bottle in the lid and then send it to the polling station. The ring cam around the center of the radio presses the cover to press the cover. 2)Nut mold The bottle holder and the glass bottle begin to rotate at high speed so that the aluminum cap tightly covers the bottle mouth. The cap-turning mold is sealed with a four-jaw balance head, which has the advantages of uniform force and beautiful sealing. 3)Sealed product When the capping head rotates to the highest point of the cam, it gradually separates from the glass bottle.
