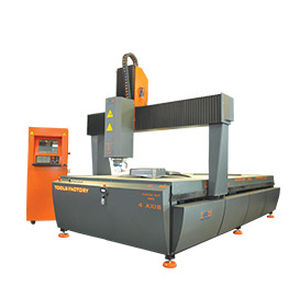

CNC trimming machine SERIES SMARTCUT

vertical

SERIES SMARTCUT ( trimming machines and milling machines ) The MASTER CUT CNC 3 and 4 axis trimming machines and milling machines produced by TOOLS FACTORY are designed for machining materials by cutting. You can cut and mill plastics, wood and wood-based materials, non-ferrous metals, e.g. aluminum. The devices are widely used in the thermoforming process – the production of 3D forms and processing of molded parts. Machines produced by us are made in various sizes of the working table, various Z axis clearances and in many options: type of spindle, cooling of the cutting tool, tool magazine, tool length measurement, vacuum table with a vacuum pump, angle aggregate (4 axis C), swarf extraction.MASTER CUT 3 and 4 axis trimming machines and milling machines have a rigid, annealed, and then, with one fixture on the milling table, a planned portal steel structure. Attaching the details on the work table is facilitated by a grooved aluminum top or optionally a plate adapted to attach details by means of a vacuum divided into valve-operated sections. Vacuum tables are typically equipped with a vacuum pump from renowned German companies such as Becker or Busch with a capacity of 250m3 / h. Precision linear rolling bearings and gear ratios with precision planetary gears provide very high positioning resolution.
