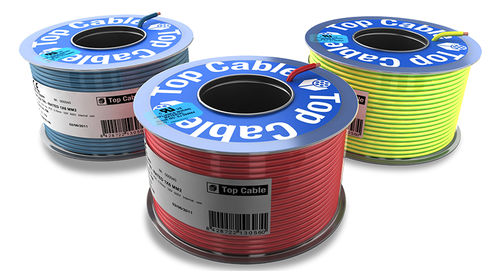

Power cable TOPFLEX MS TRI-RATEDinsulatedcopperindustrial
Add to favorites
Compare this product
Characteristics
- Type
- power
- Protection
- insulated
- Core material
- copper
- Applications
- industrial
- Number of wire
- single-conductor
- Norms
- IEC
- Other characteristics
- flexible
- Nominal voltage
Max.: 750 V
Min.: 300 V
- Temperature
Max.: 90 °C
(194 °F)Min.: -40 °C
(-40 °F)- Cross-section
Max.: 400 mm²
(0.62 in²)Min.: 0.5 mm²
(0 in²)
Description
The TopFlex MS TRI-RATED cable has been designed for the internal wiring of electrical cabinets, switch boards and small electrical devices.
Due to the characteristics of this electric cable, it can be used in conduits or in flexible motor ducts, transformers and other machinery in general.
1. Conductor
Electrolytic copper, class 5 (flexible), based on EN60228 / IEC 60228 and BS 6360.
2. Insulation
Flexible PVC, extra sliding, high service temperature type TI3 according to UNE 21031/HD 21 and Class 43 UL 1581.
VIDEO
Catalogs
No catalogs are available for this product.
See all of Top Cable‘s catalogs
