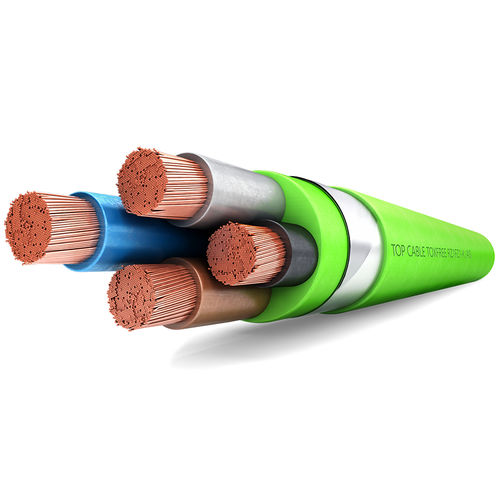

Power cable TOXFREE ZH RZ1FZ1-K (AS)armoredmulti-strandcopper
Add to favorites
Compare this product
Characteristics
- Type
- power
- Protection
- armored
- Configuration
- multi-strand
- Core material
- copper
- Applications
- industrial
- Norms
- IEC
- Other characteristics
- halogen-free, flexible
- Nominal voltage
Max.: 1,000 V
Min.: 600 V
- Temperature
Max.: 90 °C
(194 °F)Min.: -40 °C
(-40 °F)- Cross-section
Max.: 630 mm²
(0.98 in²)Min.: 1.5 mm²
(0 in²)
Description
TOXFREE® RZ1FZ1-K is an armoured LSZH safety cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is highly recommended for public places, in installations with presence of rodents, and installations in general where the cable is subject to risk of mechanical aggresion.
1. Conductor
Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
2. Insulation
Cross-linked polyethylene (XLPE).
