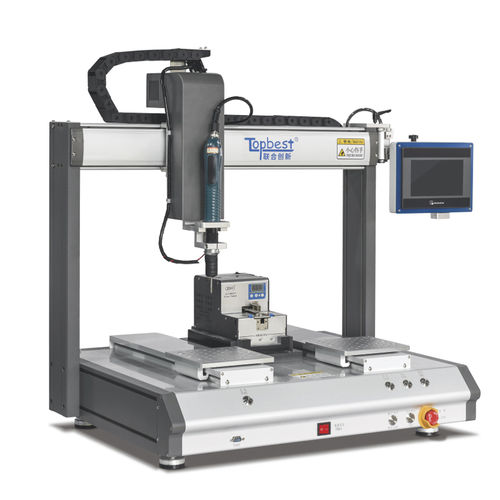

Robotic screwing machine SM-6331

magnetic

Advantage ■ Just need to loading,Reduce the labor intensity of workers. ■ Deep-hole screw fastening ■ High reliability,automatic alarm system, working >20 hours ■ Can be customized according to the special requirements ■ Rich experience on screw fastening application FQA 1. Why is Robotic Screw driving machine? -- To give better in term of quality such as same read out trace torque for each point of production. -- Higher efficiency by reducing manpower at least one to three person. 2 What are the feeding types for the Robotic Screw Driving System? -- We using the vibrator to sort the screw depending on screw type and size. -- Firstly we using the pick and place of the screw presenter. -- Another way is we using air blowing to feed directly to the screwdriver. 3. How to apply the screw to the product? -- Mainly, we have 2 ways to screw the product which is magnetic for ferrous screw and vacuum for all material including ferrous, copper, stainless steel screw. 4. What kind of screws are fit for the air blowing type machine? -- Screw models M1.4~ M4 are fit for air blowing feeding of screw driving machine. -- Screw length must less than 16mm. If more than, the feeder needs to be customized. -- The screw's length must be over 1.2 times of diameter for air blowing feeding type to prevent the screw from turn over inside the feeder's tube.
