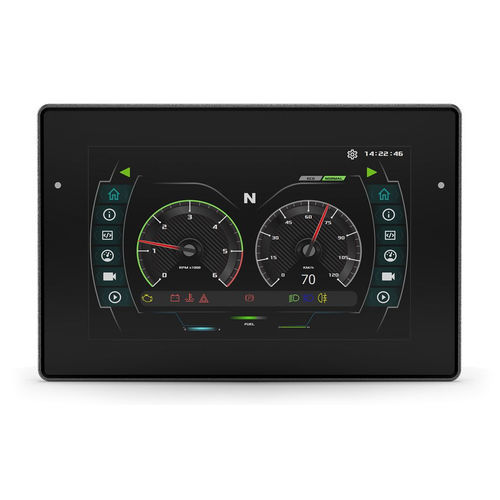

Touch screen HMI OPUS B4e

panel-mounthandheld800 x 480

The screen size, the powerful processor and the attractive price characterize the new B series from Topcon. The OPUS B4 ECO represents a new HMI family designed for quick and easy implementation in municipal, utility and special purpose vehicles, as well as in agricultural and construction machinery. In addition to a 7-inch touch screen, an aluminum housing and a customizable frame, the HMI device has an optically bonded 800 cd / m² display, which guarantees excellent readability. The IP66 degree of protection and the operating range of -30 ° C to +75 ° C enable use in wide and extreme applications and environments. On the software side, the OPUS B4 ECO can be configured with the familiar programming languages ​​and tools such as OPUS Projector, CODESYS and C / Qt. Technical Data HOUSING Orientation landscape or portrait W 202 x H 132,5 x D 40,3 mm excl. connector and cables Aluminium die cast MEMORY 1 GB DDR2 RAM 4 GB NAND flash AUDIO 1 x Audio output (left, right, GND) AC97 compatible Output power: approx. 50mW ENVIRONMENTAL CONDITIONS Temperatures: operating -30° to +75°C storage -40° to +85°C Protection: IP 66 Mechanical Shock: Level 2 Random Vibration: Level 2 Sinusoidal Vibration: Level 2 CONNECTORS Main: AMP Seal, 26 pin Video: M12 round, 5 pole, B-coded Ethernet: M12 round, 4 pole, D-coded WIRELESS Via the USB Back connector, a wireless interface can be optional added. PROGRAMMING ENVIRONMENT OPUS Projektor Codesys-Tools (3.X) ISO-Horizon C/Qt SIGNALS Light sensor Multicolor-LED Speaker, approx. 90 dB(A) POWER SUPPLY 8 … 36 V DC SUPPORTED PROTOCOLS CANopen® CANfreestyle J1939 PROCESSOR 32-bit, 800 MHz Freescale® I.MX6™
