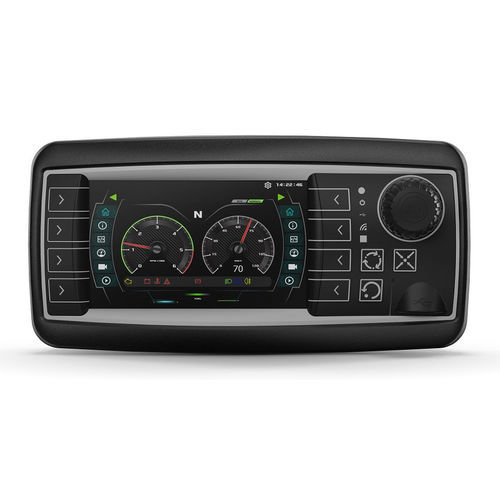

Resistive touch screen operator terminal OPUS A3s

with keyboardpanel-mount480 x 272

The OPUS A3s offers you all the possibilities of the OPUS A3eco, but with even more useful features. The A3s version allows the user to implement a variety of different user interfaces with ease. The unit also includes an encoder, eight softkeys and three hardkeys with exceptional tactile touch underlining the quality of the A3s. The 4.3” screen features operation verification, and can also be supplied as an analog resistive touchscreen. The multi-color LED is supplemented by three additional LEDs. The full-speed USB 2.0 input on the front is best suited to high-speed data exchange and is positioned in the casing of the unit for maximum protection against the elements. CANbus ports for fast operation, an acoustic alarm with up to 65 dBA output and a camera input to ensure the highest level of safety. A powerful 32-bit, 532 MHz processor offers outstanding performance. This is supported by either 512 MB or 1 GB of RAM, plus 32 KB of serial EEPROM. Technical Data HOUSING Orientation landscape or portrait W198 x H98 x D64,7 mm excl. connector and cables MEMORY 256 MB DDR2 RAM 1 GB NAND flash POWER SUPPLY 9... 36 V DC PROGRAMMING ENVIRONMENT OPUS Projektor Codesys-Tools (3.X) ISO-VT C/C++ DISPLAY 4.3", 15:9 TFT transmissive 480 x 272 px, 400 cd/m² Contrast ratio 400:1
