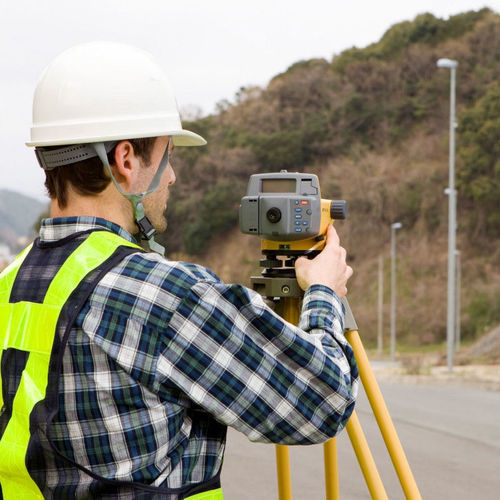

Distance measurement system DL-502

positionmagnetichorizontal

World's First "Wave-and-Read" Technology One Button Triggers Measurement and Data Storage 0.6mm/0.8mm Height Accuracy Advanced RAB Code Technology Pre-installed Measurement Programs Height Difference Measurement Inverse Staff Reading for Ceiling Height Internal Memory Simple Button Operation! After focusing on the staff, just press one button. The DL-500 reads height and distance, and stores data. Digital technology eliminates misreading and reduces operator’s eye fatigue. “Wave-and-Read” The World’s First Technology DL-500 tracks the RAB Code staff waved back and forth, and automatically reads the correct height. The staff reading becomes the minimum when it stands vertically. The DL-500 automatically finds the least value of staff readings. This world’s first technology allows for error-free readings of waved staffs, while dramatically reducing operator’s eyestrain High Accuracy! 0.6mm/0.8mm Two models are available for different accuracy requirements. DL-502: 0.6mm (Invar staff), 1.0mm (fiberglass staff) DL-503: 0.8mm (Invar staff), 1.5mm (fiberglass staff) Maximum Reliability! Field-proven Compensator Incorporating field-proven pendulum compensator with magnetic damping system, the DL-500 provides stability you need when working on busy roads or bridges subject to vibrations. Measures Ceiling Height! Inverse Staff Reading RAB Code staff can be read in inverse position. This feature dramatically facilitates height measurement of ceilings, tree branches, road signs, bridges, tunnel crowns, and other structures. Onboard programs support various measurements such as elevation, height difference, ceiling height, as well as cut/fill and stakeout in horizontal distance
