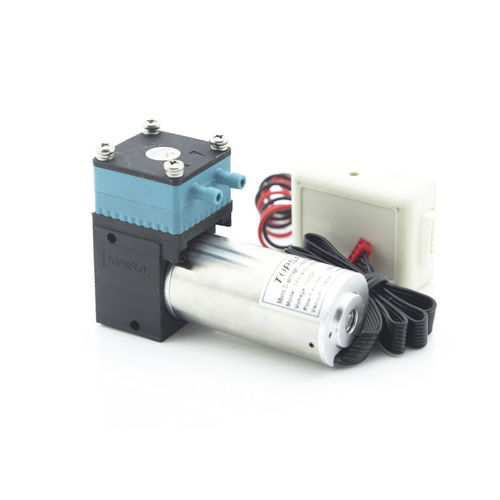

Diaphragm pump TF30A-D

for solventsfor inkwith brushless DC motor

micro diaphragm liquid /vacuum pumps are based on a simple principal,the circular power from the motor is converted into oscillating movement by aneccentric, which moves up and down its central point, this motion is then transferredto a diaphragm by means of a connecting rod, an elastic diaphragm, which in conjunction with an inlet and outlet valve creates a pumping action. The TF30A Series offers multiple component configurations allowing them to be used for either vacuum operation, liquid transfer, or alternating operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliabler, highly efficient. TF 30A pumps can be mounted in any position and can deliver up to 400 ml/min depending on the model and will operate against pressures of up to 1 bar. Features/Benefits: >> Suction of mixed gas / liquid media >> Self priming >> Low power consumption >> High efficiency >> Compact design >> Reduced pulsation >> Bubble free media transfer >> Oil-less >> Low sound level >> Long lifetime >> Lightweight
