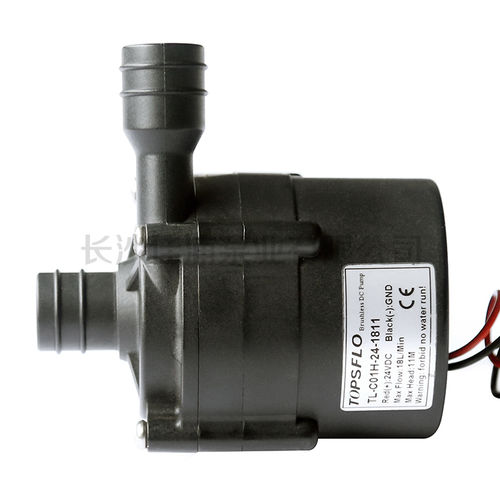

Centrifugal pump TL-C01

waterbrushless DCindustrial

Water Heater Boosting Pump TL-C01 Feature: 1.Large flow rate, high pressure 24L/min 11L 2.Boosting Water Pressure, More Stable Flow Rate High efficiency motor and rotor design, 30% higher efficiency than competitors' with similar size 3.Ultra-quietness Like Breathing 5dB Adopting ultra-quiet design, noise 5dB lower than industry average 4.No Leakage, More Reliable Static sealing design, imported Japanese PPE, strict testing, no leakage forever 5.Customized functions - PWM, 0~5V speed control,/PV solar panel driven directly,FG(RPM) signal wire,/S submersible Definitions: Dry-running protection (customized functions) Drive circuitry can detect no or little liquid in pump chamber and will stop the pump to prevent damage, pump is then restarted manually by disconnecting and reconnecting it to the power supply. Over voltage protection When the voltage over 28V, the pump will auto-protect and shut off own power supply, when the voltage falls below 28V, the pump will restart automatically. Get more http://www.topsflo.com/special-pumps/c01-water-heater--pump.html
