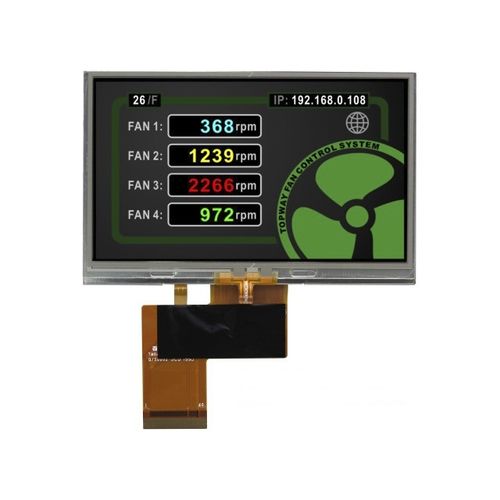

TFT LCD display module LMT043DFFFWD-NNAresistive touch screencolor480 x 272
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, resistive touch screen
- Type
- color
- Format
- 480 x 272
- Applications
- industrial, instrumentation
- Other characteristics
- LED-backlit
Description
The LMT043DNFFWD-NNA is manufactured by Shenzhen Topway Technology and has a slim design, with a built-in TCOM and VCOM.
• - Screen Size(Diagonal) : 4.3”
• - Resolution:480x272
• - Voltage:3.3V
• - Viewing Direction : 12H
• - Outline Dimension : 105.5x67.2 x4.1(mm)
• - Active Area :154.08x 85.92(mm)
• - Command I/F: RS-232C /Ethernet
• - Backlight:White LED
• - Signal Interface:24bit parallel
• - Pixel Configuration:RGB Stripe
• - Operating Temperature -20 ~ +70°C
• - Storage Temperature -30 ~ +80°C
