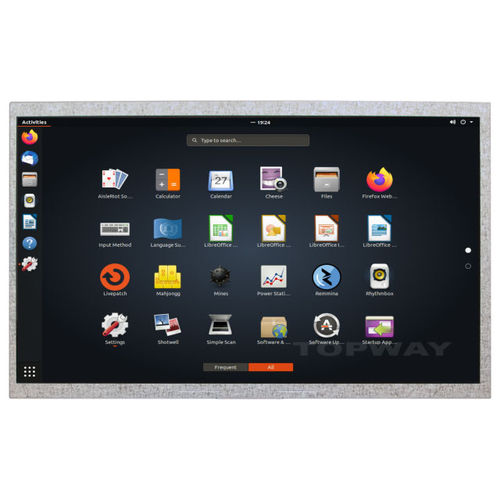

TFT LCD display module LMT101ENMFWD

1024 x 600industrialLED-backlit

• - Resolution: 1024x600 • - Interface: RGB • - Voltage: 3.3V • - Temperature: -20°C ~ 70°C • - Outline: 235mm x 143mm x 5mm • - Size: 10.1" • - Active Area: 222.72mm x 125.28mm Applications This Module is designed for portable DVD, GPS car TV & PMP(portable multimedia player) application which require high quality flat panel displays. It is also a good substitute for many outmoded CSTN module in the industrial application. This product is composed of a TFT-LCD panel, driver ICs, FPC ,LED backlight unit . Signal Interface : Digital 24-bits RGB Display Technology : a-Si TFT active matrix Display Mode : Transmissive, Normally White Screen Size(Diagonal) : 10.1 inch Outline Dimension : 235.00 x 143.00 x 5.0 (mm) Active Area : 222.72x 125.28(mm) Number of dots : 1024(RGB) x 600 Pixel Pitch : 0.2175x 0.2088(mm) Pixel Configuration : R.G.B. Vertical Stripe Backlight : White LED Viewing Direction : 6 o’clock ( Gray scale Inversion )(*1) 12 o’clock(*2) Operating Temperature : -20 ~ +70°C Storage Temperature : -30 ~ +80°C Surface Treatment : AG
