TFT LCD display module LMT070DICFWD-AKEcolor800 x 480industrial
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD
- Type
- color
- Format
- 800 x 480
- Applications
- industrial
- Other characteristics
- LED-backlit
Description

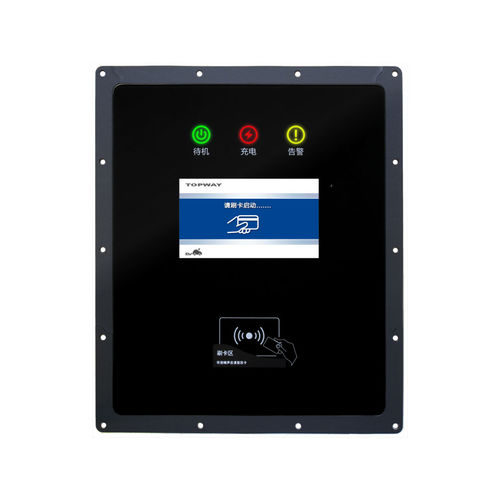

LMT070DICFWD-AKE was designed for EV charger.
Screen Size: 7.0 inch
Voltage: 5V
Signal Interface: LVDS (JEIDA 24 bits)
Display Mode: Transmissive with Normally White
Outline Dimension: 340.0 x 400.0 x 33.0(mm)
Active Area : 154.80x 85.90(mm)
Number of dots : 800x 3 (RGB) x 480
Dot Pitch : 0.1926x 0.179(mm)
Pixel Configuration: R.G.B. Vertical Stripe
Touch Panel Type:Capacitive Touch Panel
Backlight : White LED
Viewing Direction : 6 o’clock (Gray scale Inversion ) (*1) 12 o’clock (*2)
Operating Temperature : -20 ~ +70°C
Storage Temperature : -40 ~ +85°C
★TOPWAY is a professional industrial LCD module manufacturer and solutions provider.
For semi-custom or full-custom products, please contact us for further information and options.
