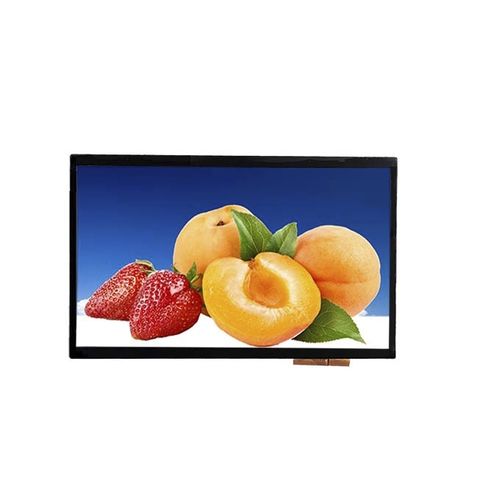

LED display module LMT101ENMFWD-NNDTFT LCDcapacitive touch screencolor
Add to favorites
Compare this product
Characteristics
- Screen type
- LED, TFT LCD, capacitive touch screen
- Type
- color
- Format
- 1024 x 600
- Applications
- industrial, instrumentation, control
- Other characteristics
- electronic, LED-backlit
Description
Signal Interface : Digital 24-bits RGB
Display Technology : a-Si TFT active matrix
Display Mode : Transmissive, Normally White
Screen Size(Diagonal) : 10.1 inch
Outline Dimension : 235.00 x 143.00 x 5.0 (mm)
(see attached drawing for details)
Active Area : 222.72x 125.28 (mm)
Number of dots : 1024 (RGB) x 600
Pixel Pitch : 0.2175x 0.2088(mm)
Pixel Configuration : R.G.B. Vertical Stripe
Backlight : White LED
Viewing Direction : 6 o’clock( Gray scale Inversion )(*1)
12 o’clock(*2)
Operating Temperature : -20 ~ +70°C
Storage Temperature : -30 ~ +80°C
Surface Treatment : HC
★TOPWAY is a professional industrial LCD module manufacturer and solutions provider.
For semi-custom or full-custom products, please contact us for further information and options.
