LED display module TM080SDH01TFT LCDtouch screencolor
Add to favorites
Compare this product
Characteristics
- Screen type
- LED, TFT LCD, touch screen
- Type
- color
- Format
- 800 x 600, high-resolution, 24-digit
- Applications
- industrial, control, for control panels, safety, power
- Structure
- compact
- Configuration/mounting
- indoor
- Other characteristics
- cost-effective, high-contrast, electronic, high refresh rate, LED-backlit
Description

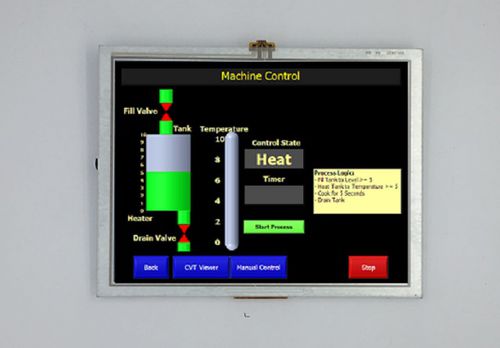

This 8 inch tft lcd display module is made by TianMa. Suitable for industry control, instrumentatiom, medical, power electic equipment applications.
• - Screen Size(Diagonal) : 8 inch
• - Resolution:800x600
• - Display Mode :TM with Normal White
• - Voltage:5V
• - Viewing Direction : 12H
• - Outline Dimension : 171.6x132.3 x 1.85(mm)
• - Active Area :162x 121.5(mm)
• - Interfsce: RGB
• - Backlight:LED
• - Operating Temperature -20 ~ +70°C
• - Storage Temperature -30 ~ +80°C
