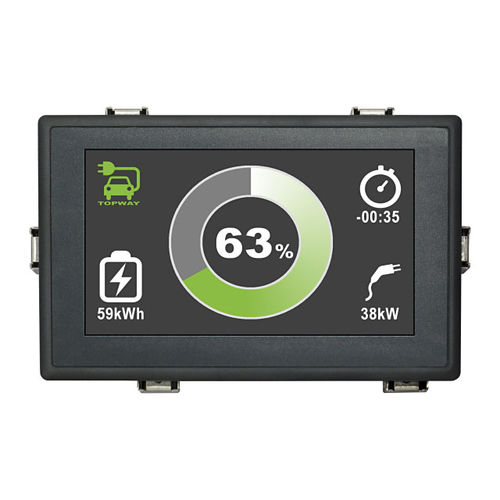

7" display module HKT070DTA-3CLCDresistive touch screencolor
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, resistive touch screen
- Type
- color, dot-matrix
- Format
- 800 x 480
- Screen size
- 7"
- Applications
- industrial, instrumentation, control, for control panels, information, safety, power, for medical equipment, fridge, for transportation, remote
- Interface
- RS-232
- Structure
- compact
- Configuration/mounting
- indoor, portable, outdoor, integrated, built-in
- Other characteristics
- cost-effective, electronic, high-contrast, smart, with buzzer, LED-backlit
Description
TOPWAY HKT070DTA-3C is a Smart TFT Module with 32bit MCU on board. Its graphics engine provides numbers of out standing features. Itsupports TOPWAY TML 3.0 for preload and predesign display interface that simplify the host operation and development time. Suitable for industry control, instrumentation, medical electronics, power electrice quipment applications.
• - Screen Size(Diagonal) :7 inch Smart TFT LCD
• - Resolution:800x480
• - Interface:RS232
• - Display Mode :Transmissive/Normal White
• - Voltage:11V-26V
• - Viewing Direction : 6H
• - Outline Dimension : 204mm x 150mm x 32mm
• - Active Area :154.08mm x 85.92mm
• - Backlight:LED
• - Prodect Downlosd:by PC or U-driver(with OTG cable)
• - Operating Temperature -20 ~ +70°C
• - Storage Temperature -30 ~ +80°C
• - Touch Screen:RTP
• - Casing:with Metal Cse
