TFT LCD display module LMT033XDHG01IPSLCD/ISTNcolor
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, IPS, LCD/ISTN
- Type
- color, dot-matrix
- Screen size
- 3.3"
- Applications
- industrial, instrumentation, safety, power, for medical equipment, for the energy sector, for transportation
- Structure
- compact
- Configuration/mounting
- portable, indoor, integrated, built-in
- Other characteristics
- cost-effective, electronic, high-contrast, high refresh rate, LED-backlit
Description

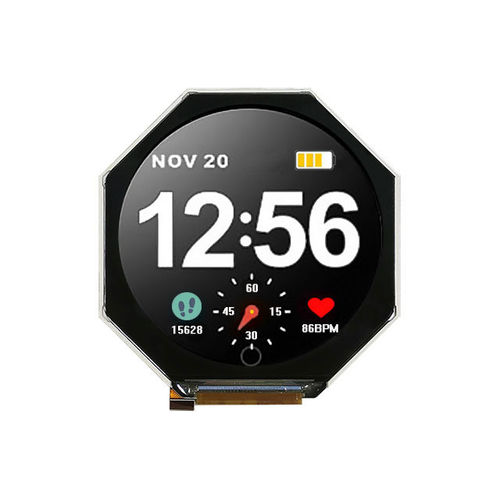

Circular display
3.3 inch circular TFT LCD Display 320*320 MIPI
-Size:3.3"
-Resolution:320x320
-Interface:MIPI
-Voltage:2.8V
-Temperature:-20°C ~ 70°C
-Outline:66.20 × 69.30 × 2.66 (Not include FPC dimension)
-Active AreaDiameter 60mm
The industrial marketplace is demanding circular displays, to differentiate product design. This extremely thin profile (2.67mm) 3.3 inch round TFT LCD has 320x320 resolution, which is suitable for home appliances, utility & smart metering, marine & automative markets.
