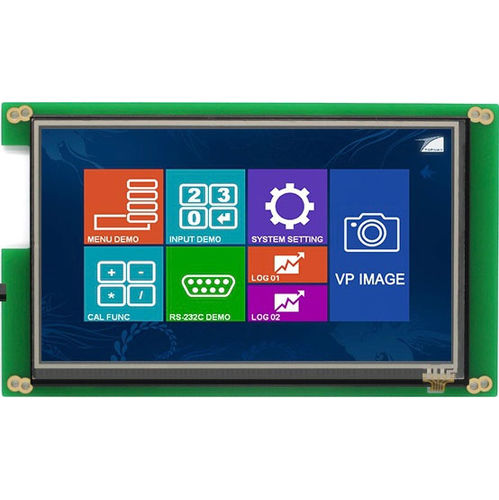

7" display panel LMT070DICFWD-NDA-2TFT LCDtouch screencolor
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, touch screen
- Type
- color, dot-matrix
- Format
- 800 x 480, high-definition
- Screen size
- 7"
- Applications
- industrial, information, digital signage, instrumentation
- Structure
- compact
- Configuration/mounting
- built-in
- Other characteristics
- electronic, high-brightness, LED-backlit, cost-effective
Description
7 inch Color TFT LCD Module LVDS 800x480
• - Screen Size(Diagonal) : 7 inch
• - Resolution:800x480
• - Display Mode :Transmissive/Normal White
• - Voltage:3.3V
• - Viewing Direction : 6H
• - Outline Dimension : 190.0*112.0*9.8(mm)
• - Active Area :154.08x 85.92(mm)
• - Interface: LVDS(VESA24 bit)
• - Backlight:LED
• - Operating Temperature -20 ~ +70°C
• - Storage Temperature -30 ~ +80°C
professional
★TOPWAY is a professional industrial LCD module manufacturer and solutions provider.
For semi-custom or full-custom products, please contact us for further information and options.
