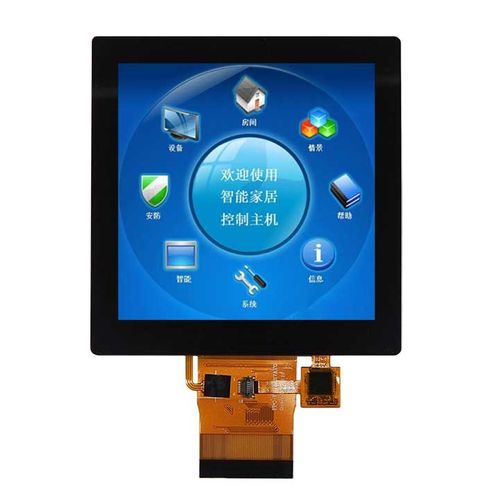

TFT LCD display module LMT040EATFWA-NNDcapacitive touch screencolor480 x 480
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, capacitive touch screen
- Type
- color
- Format
- 480 x 480
- Screen size
- 4"
- Applications
- industrial, instrumentation, control, for medical equipment
- Other characteristics
- electronic, LED-backlit
Description
General Specification
Screen Size(Diagonal) :4.0 inch
Resolution :480(RGB) x 480
Signal Interface :24bit parallel RGB interface
Color Depth :16.7M color (24bit)
Dot Pitch :0.1497 x 0.1462 (mm)
Pixel Configuration :RGB Vertical Stripe
Display Mode :Transmissive (normal Black )
Surface Treatment :Glare Treatment
Viewing Direction :Full View
Outline Dimension :84 x 86x 3.4(mm)(exclude FPC, see attached drawing for details)
Active Area :71.865x 70.176 (mm)
Backlight :White LED
Operating Temperature :-20 ~ +70°C
Storage Temperature :-30 ~ +80°C
Note:1 Color tune may slightly changed by temperature and driving voltage.
★TOPWAY is a professional industrial LCD module manufacturer and solutions provider.
For semi-custom or full-custom products, please contact us for further information and options.
