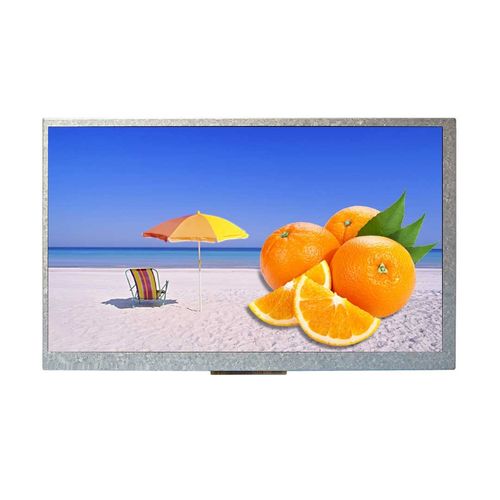

TFT LCD display module LMT070DNCFWD-2color800 x 4807"
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD
- Type
- color
- Format
- 800 x 480
- Screen size
- 7"
- Applications
- industrial, for control panels, for medical equipment
- Other characteristics
- LED-backlit, custom
Description
General Specification
Screen Size(Diagonal) :7.0”
Active Area :154.08 x 85.92 (mm)
Number of dots :800 (RGB) x 480
Pixel Pitch ：0.1926x0.1790(mm)
Color Depth:16.7M colors
Display Technology :a-Si TFT active matrix
Display Mode :Normal White, Transmissive
Display Interface :RGB
Viewing Direction :6 o’clock(Gray scale Inversion) (*1)12 o’clock (*2)
Surface Treatment :Anti-Glare
Operating Temperature :-20 ~ +70°C
Storage Temperature :-30 ~ +80°C
Note:*1. For saturated color display content (eg. pure-red, pure-green, pure-blue or pure-colors-combinations).
*2. For “color scales” display content.
★TOPWAY is a professional industrial LCD module manufacturer and solutions provider.
For semi-custom or full-custom products, please contact us for further information and options.
