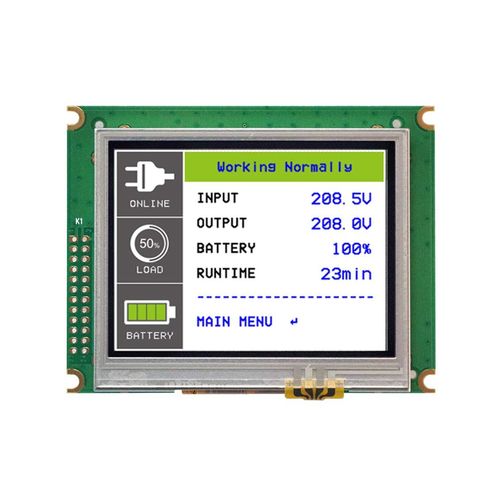

3.5" display module LMT035KDH03-NHA-1colorLCD/TFTresistive touch screen
Add to favorites
Compare this product
Characteristics
- Type
- color, LCD/TFT, resistive touch screen
- Format
- 320 x 240
- Screen size
- 3.5"
- Applications
- industrial, instrumentation, control, power
- Other characteristics
- LED-backlit
Description
General Specification
Screen Size(Diagonal) :3.5 inch
Resolution :320(RGB) x 240
Interface :8bit MCU Interface / SPI Interface
Color Depth :16.7M color (24bit)
Dot Pitch :0.219 x 0.219 (mm)
Pixel Configuration :RGB Stripe
Display Mode :Transmissive / Positive
Surface Treatment :Anti-Glare Treatment
Viewing Direction :6 o’clock
Outline Dimension :92.7 x 72.0 x 10.9 (mm)
Active Area :70.08 x 52.56 (mm)
Weight :Approx 68g
Backlight :LED, White
Operating Temperature :-20 ~ +70°C
Storage Temperature :-30 ~ +80°C
Note: Backlight color may slightly change over temperature and driving voltage
