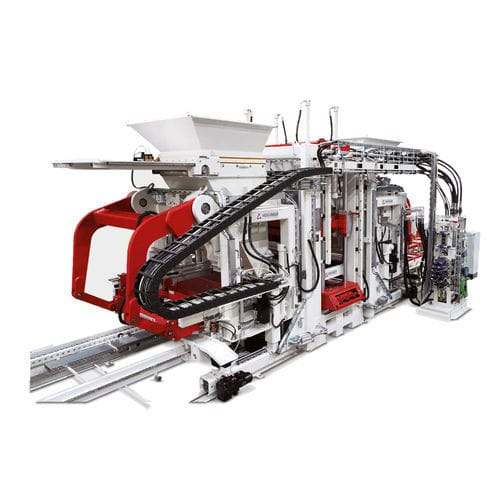

Concrete block making machine MULTIMAT RH 2000-4

automatic

This high end production machine combines many years of machine building experience with the latest proven M-Version technology to create reliable and repeatable performance levels for high quality concrete products. From the most exact dimensional tolerances to the strongest durability in concrete density, the smooth and easy operation of the M-Version RH 2000 production machine assures the greatest economic efficiency for the producer in his marketplace. The RH 2000-4 leads in performance levels where others cannot follow. -Technical data* production board (mm)** - 1.400 x 1.300 production area (mm)** - 1.300 x 1.250 min. product heigh (mm) - 25 max. product height (mm) - 500 dead weight approx. (kg) - 48.000 paver 10x20x6 without face mix - cycle time(s) - 10 m² in 8h - 3.231 qty stones/form - 66 paver 10x20x6 with face mix - cycle time (s) - 11,5 m² in 8h - 2.809 qty stones/form - 66 hollow block 20x40x20 - cycle time (s) - 13,5 quantity in 8h - 32.640 qty stones/form/td>18 -Features Pallet depth minimum (mm) - 1100 Pallet depth maximum (mm) - 1450 Pallet width minimum (mm) - 1300 Pallet width maximum (mm) - 1520 Minimum manufacturing height (mm) - 25 Maximum manufacturing height (mm) - 500 Table vibration Variotronic, 1 table, pallet dept max. 1450 mm - Standard Table vibration Variofrequency, 1 table, pallet depth max. 1300 mm - Option Table vibration Variotronic, 2 tables, pallet depth 1150 mm and up - Option Table vibration Variofrequency, 2 tables, pallet depth 1150 mm and up - Option Standard hydraulics, Bosch-Rexroth - Standard
