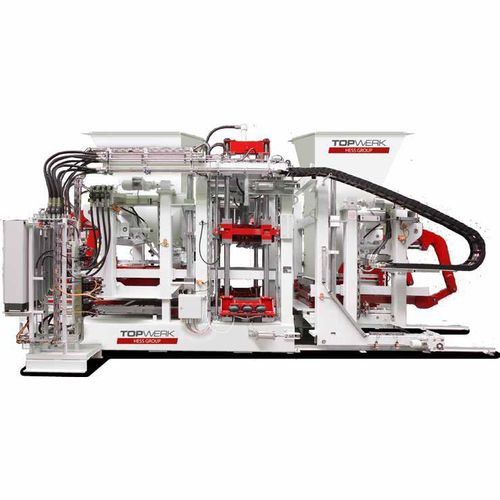

Concrete block making machine MULTIMAT RH 1500-4

automaticmanual

The RH 1500-4 has been developed as a particularly powerful machine for the high-performance sector. Also available in M Version technology, it features the harmonic cooperation between electrical and hydraulic machine functions to generate reliable and consistent high output production. It is a powerful machine that stands out for its smooth mechanical movements and versatility in high quality production of a wide range of concrete shapes Technical data* production board(mm)** - 1.400 x 1.100 production area (mm)** - 1.300 x 1.050 min. product height (mm) - 25 max. product height (mm) - 500 dead weight approx. (kg) - 46.000 paver 10x20x6 without face mix - cycle time (s) - 10,5 m² in 8h - 2.517 qty stones/form - 54 paver 10x20x6 with face mix - cycle time (s) - 12,5 m² in 8h - 2.114 qty stones/form - 54 hollow block 20x40x20 - cycle time(s) - 14,5 quantity in 8h - 20.258 qty stones/form - 12 Features Pallet depth minimum - 870 Pallet depth maximum (mm) - 1150 Pallet width minimum (mm) - 1200 Pallet width maximum (mm) - 1520 Minimum manufacturing height (mm) - 25 Maximum manufacturing height (mm) - 500 Table vibration Variotronic, 1 table, pallet dept max. 1150 mm - Option Table vibration Variofrequency, 1 table, pallet dept max. 1150 mm - Standard Standard hydraulics, Bosch-Rexroth - Standard MAC 8 control with 2 tamper head cylinders - Option Tamper head clamping, pneumatic - Standard Tamper head clamping, hydraulic (non Hess machine moulds) - Option Tamper head cross cleaner, straight - Option Mold clamping, pneumatic - Standard Hydraulic function for mold flaps - Option Electrical mold extension with pusher (for machines without face mix) - Option Mold change, manual - Option
