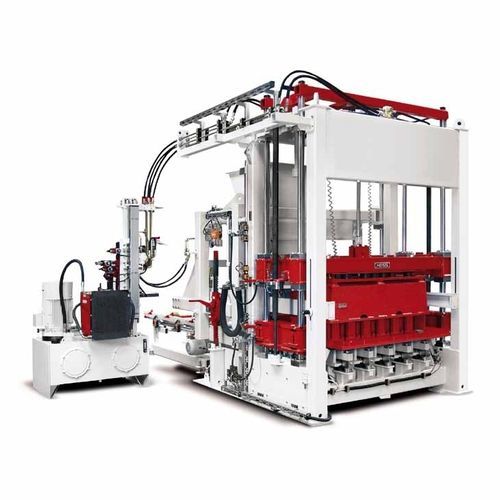

Concrete block making machine MULTIMAT RH 600-3

automatic

The RH 600 machine provides a modular structure to enable the producer to phase-in the level of automation as the market demands. The initial level of automation for the wet line or the dry line can be upgraded to a completely automated system in response to growth in market demand. Advantages -Operator controls with complete diagnostics -The dimensional exactness and high density for -improved durability -Suitable for pavers, retaining walls, and hollow -block production and similar concrete products Standard equipment: -Oil bath vibrators -Filler box with driven agitator Technical data production board(mm) - 1.400 x 700 production area (mm) - 1.300 x 650 min. product height (mm) - 25 max. product height (mm) - 300 dead weight approx. (kg) - 14.000 paver 10x20x6 without face mix - cycle time (s) - 14 m² in 8h - 1.258 qty stones/form - 36 paver 10x20x6 with face mix - cycle time (s) - 18 m² in 8h - 979 qty stones/form - 36 hollow block 20x40x20 - cycle time (s) - 16 quantity in 8h - 13.770 qty stones/form - 9
