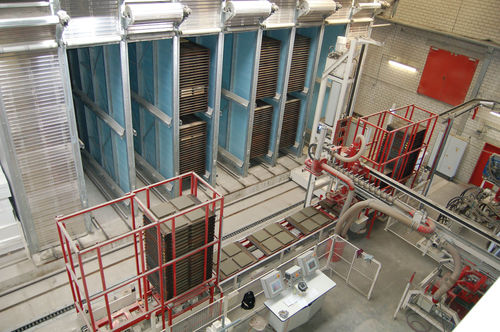

Automatic handling line

Green slab turning device -To remove the slabs from the slab depositing carriage by means of a vacuum lifter for 180° turning and for delivery to the slab transfer device of the flat depositing device-wet side -Consisting of a solid frame, servomotor turning arm and a lifting unit with interchangeable suction units depending on the slab formats -Quick adjustment to product height by servomotor lifting movement of the suction frame Slab transfer devices -Slab transfer device-wet side picks up the products from the carriage or from the green slab turning device and passes them to the following flat depositing device-wet side -Universal slab transfer device-dry side takes the products from the flat depositing device-dry side and passes them to -the value adding line or packing line -Consist of electrically driven horizontal slides, lifting mast and turning device and format-dependent suction units on -the wet side and a universal vacuum suction plate for all formats on the dry side, with vacuum generator -Travel, lifting and rotary drives designed as servomotors Finger car -For transporting the filled pallet stacks with green slabs to the shelf spaces, the empty pallet stack to the flat depositing device-wet side and the pallet stack with cured slabs to the flat depositing devicedry side, and for transporting the empty pallets from there to the press or shelf -Fully automatic, including control. The system is designed so that two pallet stacks can be positioned one above the other in the shelf spaces -Upper carriage designed with 180° turning device so that the loading and unloading positions can be opposite to each other
