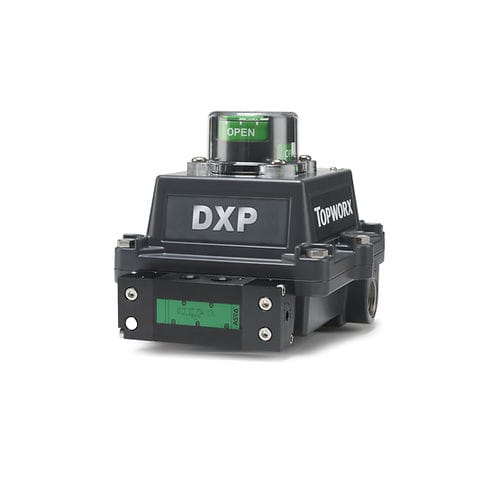

Explosion-proof valve controller Valvetop DXP

Rugged Enclosures for Every Environment • Aluminum, Composite, Stainless • Up to four conduit entries (English or Metric) • O-ring seals everywhere • Buna, Silicone o-ring options Stainless Steel Shaft & Fasteners • ¼" DD or NAMUR Shaft • Captive cover bolts • Captive dome screws Bus Networking / Sensor options • FOUNDATION Fieldbus, Profibus, DeviceNet, AS-Interface, HART • GO™ Switch, Proximity, P+F™, Mechanical, 4-20mA Transmitter Visual Display • Impact resistant polycarbonate • Intuitive colors (Green/Red) • Adjustable/customizable • Pre-adjusted to 90° for easy installation • Less than 1 3/4" tall Environmental Extremes • Rated for environments from –76°F/–60°C to 347°F/175°C • NEMA Type 4, 4X, IP66/67 Pilot Valves • Aluminum or 316 Stainless Steel • Low Power Solenoid or Ultra-Low Power Piezo • Single or Dual Coil • 1.06 Cv and 3.7 Cv • Integrally mounted for extra protection • Built-in filter protects the pilots against debris • Fast, easy troubleshooting: - Pneumatic tubing is color-coded for trouble shooting while system is pressurized - Troubleshoot valve without removing the cover
