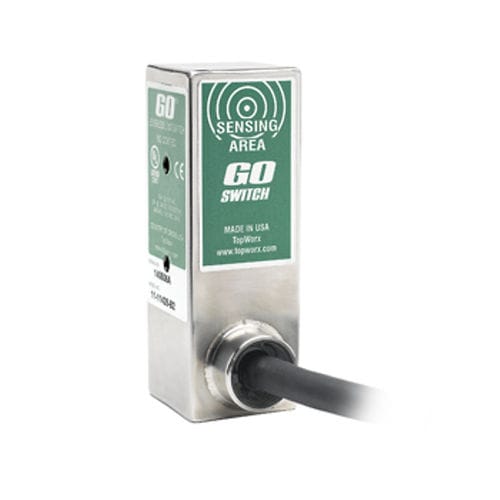

Wireless limit switch GO Switch 11

explosion-proof

The GO™ Switch Model 11 features sealed gold flashed contacts, no-touch sensing and snap action response in a square switch design with a 3/8™ sensing range. Features DMDB form Z contact arrangement, SPDT form C contact arrangement, Latching contacts 9/16 ″ extended sensing distance 176°C (350°F) operating temperature Zone 0 or 1 hazardous area aprovals Division 1 or 2 hazardous areas approvals Quick disconnect connectors Sub-Sea capabilities Features • Single Pole Double Throw (SPDT) 5A/240VAC, 10A/120VAC, 3A/24VDC • AC/DC, NO/NC Wiring Flexibility • -50 °C to 105 °C (-58 °F to +221 °F) operating temperature • 10 mm (3/8 in) sensing distance (ferrous metal) • Dry Contact • Intrinsically Safe • Side sensing • Gold Plated Contacts Options • High Temperature: -50 °C to +176 °C (-58 °F to +350 °F) • 316L Stainless Steel Housing • Extended Sensing: 14 mm (9/16 in) • Terminal Block, Lead Wires, or Cables • Latching Contacts • SubSea Connectors • Quick Disconnects - Micro or Mini • Global Hazardous Area Approvals
