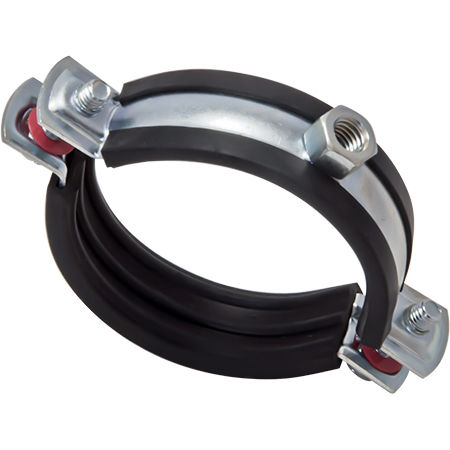

Screw pipe clamp DG2 boltmetalwith rubber bushing
Add to favorites
Compare this product
Characteristics
- Type
- screw, bolt
- Material
- metal
- Other characteristics
- with rubber bushing
- Diameter
Max.: 169 mm
(6.65 in)Min.: 12 mm
(0.47 in)
Description
Features: Easy and quick installation - for time saving on site.
Noise insulation according to DIN 4109.
Environment: Low content of dangerous PAH chemicals - to protect people and environment.
Safety: High resistance on bending and high breaking load values - for your safety.
Locking screw secured against loss.
Material: Two lock bolts and low PAH content rubber lining as per ZEK 01.4-08,category 2.
Electro zinc plated ( min. 5-10μm ).
Noise insulating lining EPDM rubber.
Profile temperature resistance from -50˚C to 110˚C.
Profile hardness value Shore (A) 50±5.
