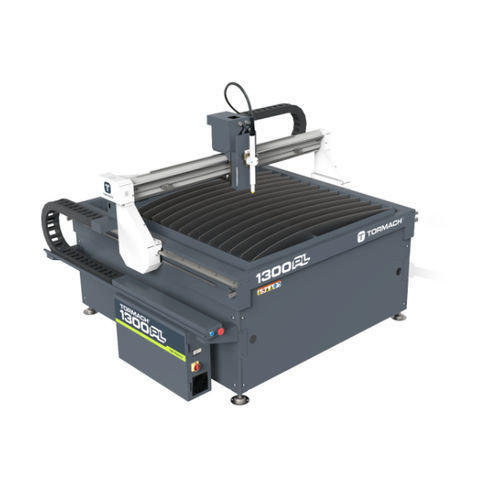

Metal cutting table 1300PLplasma
Add to favorites
Compare this product
Characteristics
- Materials
- for metals
- Other characteristics
- plasma
Description
Shop Requirements
Power Required: Single-Phase 230 Vac, 50/60 Hz, 20A breaker
Air Pressure: Between 90 - 120 psi (620 kPa - 825 kPa) @ 6.7 CFM. If the air supply is more than 120 psi (825 kPa), you must use a regulator.
Resolution And Accuracy
Resolution: 0.0005 in. (.0127 mm)
Repeatability: ±0.001 in. (±0.0254 mm)
Positional Accuracy: ≤0.005 in. / ft (130 micron / 300mm)
PathPilot® Controller
User-friendly design
Free Simulator via PathPilot HUB
Intuitive conversational programming
DXF import capability
Built-in shape library
Built-in auto cut feeds & speeds calculator
Built-in Dropbox™ support for seamlessly transferring programs
80 GB of available space for G-Code
Torch
Plasma Source Options: Hypertherm Options: Powermax45, Powermax65 SYNC, Powermax85 SYNC, Powermax105 SYNC
Torch Type: Floating Head with Digital Torch Height Control
Torch Features: Breakaway Torch, Collision Detection
Torch Height Control: Velocity Locking
