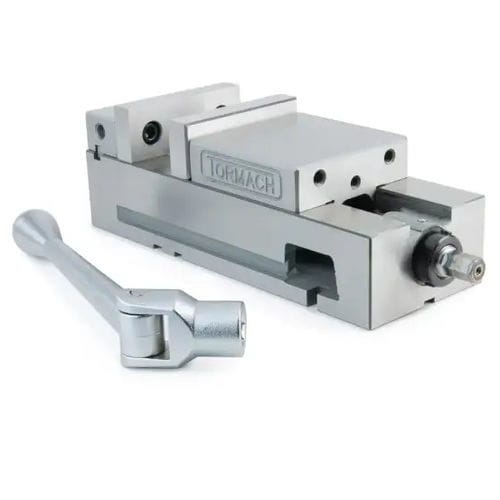

Machine tool vise 35285

manual

Shipping Weight: 44.1 lbs. Stock: In stock 4 in. CNC Vise. Compact Vise with replaceable jaw plates, includes bridge clamp set. A versatile and compact 4 in. CNC Vise that can be mounted upright or on either side. Precision ground cast iron construction Lockdown design eliminates "jaw lift" of moveable jaw. 3/8-16 UNC tapped holes accept standard 4 in. jaw plates for inside or outside jaw placement. 7/16-14 tapped hole located on fixed jaw for attaching a workstop, etc. Generous clamping slots allow for secure and versatile placement of vise on table .390 in. (10 mm) keyway slots on bottom face with 10-32 UNF tapped holes (x6). Can be used for vise keys (optional, not included) or for attaching vise to fixture plate, etc. Made in Taiwan Vise bed heights are held to a .0004" (.01mm) height tolerance
