- Swivel caster
- TORWEGGE GmbH & Co. KG .
Swivel caster base plateshock absorbinglight-duty
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- shock absorbing, light-duty, thermoplastic rubber, galvanised steel
- Load capacity
Max.: 220 kg
(485 lb)Min.: 80 kg
(176 lb)- Wheel diameter
Max.: 200 mm
(7.874 in)Min.: 80 mm
(3.15 in)- Tread width
Max.: 47 mm
(1.85 in)Min.: 30 mm
(1.18 in)
Description

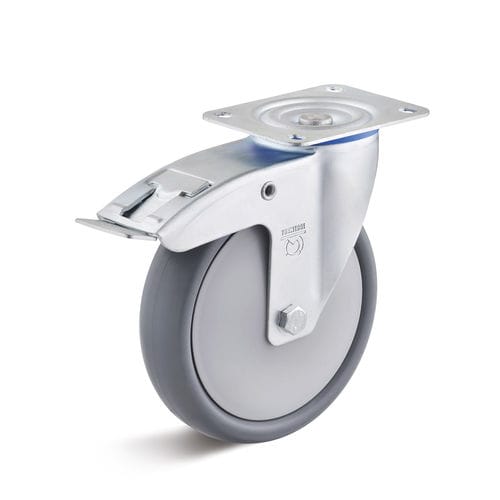

Standard castor with thermoplastic rubber wheel
- polypropylene wheel body with ball bearing
- grey thermoplastic rubber tread, approx. 85° shore A
- with thread guards to protect the ball bearing from dust and dirt
- standard steel sheet housing, galvanized
Torwegge‘s standard housings are made from deep-drawn, galvanized steel sheet. The solid-riveted, double ball
bearing in the slewing ring delivers an advantageous price-performance ratio when used for hand-held logistics
applications. Castors in standard housing are commonly used by a variety of sectors in transport racks. They can
carry a max. load of 1,200 kg at 4 km/h.
Thermoplastic (TPE) has a higher load capacity than rubber. These grey tires minimize the impact on your fl oors,
providing a comfortable ride without leaving traces. Some contact discoloration may result from the oil-bearing
material when the tires are left motionless for longer periods on sensitive floors.
Model article number: 0029499
