4-axis CNC machining center FRU seriesverticalgantry typefor the aeronautical industry
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- vertical
- Structure
- gantry type
- Applications
- for the aeronautical industry
- Other characteristics
- high-productivity, high-precision
- X travel
Min.: 4,000 mm
(157.48 in)Max.: 24,000 mm
(944.88 in)- Y travel
Min.: 3,500 mm
(137.8 in)Max.: 10,750 mm
(423.23 in)- Z travel
1,500 mm, 2,000 mm
(59.06 in, 78.74 in)- Power
Min.: 30 kW
(40.79 hp)Max.: 113 kW
(153.64 hp)- Work feed X-axis
Min.: 1 mm/min
(0 in/s)Max.: 30,000 mm/min
(20 in/s)- Work feed Y-axis
Min.: 1 mm/min
(0 in/s)Max.: 30,000 mm/min
(20 in/s)- Work feed Z-axis
Min.: 1 mm/min
(0 in/s)Max.: 20,000 mm/min
(13 in/s)
Description

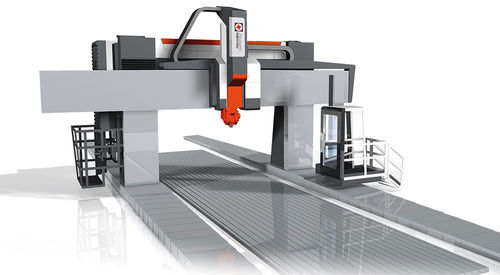

A basic feature of the FRU machining centre is the travel gantry that allows full utilisation of the work space. It is designed for machining complex workpieces. Its flexibility mainly results from the possibility of using versatile spindle heads produced by TOS Kuřim.
The high productivity of the machine is the result of its structural design. Thanks to large material removal, solid structure and automatic exchange of spindle heads, TOS FRU can be used for the most demanding operations. Customers use the machine for machining tram switches, steam turbines, ship engines, blades of Kaplan turbines, aircraft parts, etc.
VIDEO
Catalogs
No catalogs are available for this product.
See all of TOS KURIM‘s catalogs
