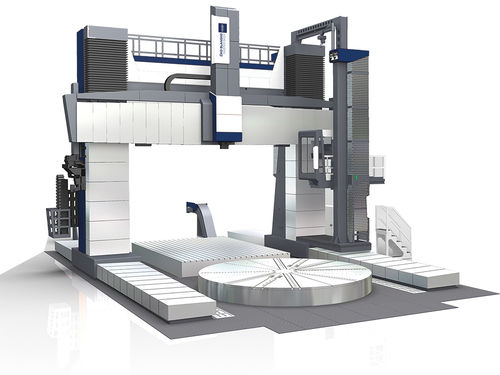

CNC lathe SKDY series verticaldouble-columnrotating table
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Structure
- double-column, rotating table
- Applications
- drilling, for aerospace applications, for molds
- Performance
- high-precision
- Associated function
- milling, boring, grinding
- Diameter
Min.: 5,000 mm
(196.85 in)Max.: 10,000 mm
(393.7 in)- Spindle speed
Min.: 25 rpm
(157.08 rad.min-1)Max.: 125 rpm
(785.398 rad.min-1)- Axe X
Min.: 6,000 mm
(236 in)Max.: 11,000 mm
(433 in)- Axe Z
Min.: 2,000 mm
(79 in)Max.: 3,200 mm
(126 in)
Description
A double-column vertical lathe combines the advantages of a vertical lathe and gantry machining centre. We are able to meet all customer requirements regarding the size of the workpiece. The load capacity of the table up to 1,100 tons speaks for itself.
As the main parts of the machine are castings, you can always rely on high rigidity, geometric precision and long service life. The modular concept provides high flexibility in the machine design. ČKD SKDY allows turning of internal and external surfaces, as well as milling, thread turning, grinding, boring, drilling and other operations. The machine is used by customers for machining in the rail, ship-building, aerospace and arms industries.
