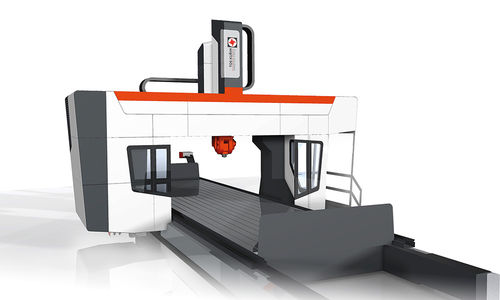

3-axis CNC machining center FRF series verticalmobile gantryfor the aeronautical industry
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- mobile gantry
- Applications
- for the aeronautical industry, for large workpieces
- Other characteristics
- high-performance, high-productivity, high-precision
- X travel
Min.: 4,000 mm
(157.48 in)Max.: 24,000 mm
(944.88 in)- Y travel
2,900 mm, 3,400 mm, 3,900 mm, 4,900 mm
(114.17 in, 133.86 in, 153.54 in, 192.91 in)- Z travel
1,500 mm
(59.06 in)- Power
30 kW, 37 kW, 45 kW
(40.79 hp, 50.31 hp, 61.18 hp)- Work feed X-axis
Min.: 1 mm/min
(0 in/s)Max.: 30,000 mm/min
(20 in/s)- Work feed Y-axis
Min.: 1 mm/min
(0 in/s)Max.: 30,000 mm/min
(20 in/s)- Work feed Z-axis
Min.: 1 mm/min
(0 in/s)Max.: 30,000 mm/min
(20 in/s)
Description
This machining centre with FRF movable gantry can be found in more than 20 countries. Customers prefer this machine mainly because of its robust structure, high throughput in a small installation area and high performance. Its high productivity has been demonstrated with more than 120 customers.
The FRF machining centres boast a wide range of applications. They enable machining of complex workpieces of large dimensions. For example: machining of aircraft engines, bogies for locomotives and subway rolling stock, Kaplan turbines, parts of cranes, turbine casings, etc.
VIDEO
Catalogs
General Catalogues
20 Pages
Gantry machining centre
11 Pages
