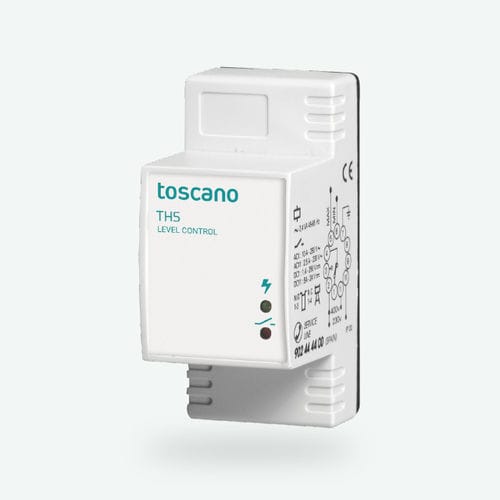

Conductive level controller TH5

for storage tanks

Level relay for long distance using conductive probes, for well control. - Dual voltagesupply 230 or 400 VAC (12/24 VDC) - Plug-in into 11-pin socket - Minimum level probe Codes and references - 10000107 TH5-230/400 - 10000108 TH5-12/24 Specifications - Signalling: VOLTAGE and RELAY - Supply voltage: 230/400VAC - 50/60 Hz (other voltages on request) - Power consumption: 2 VA - Permissible voltage variations: +10% -20%. - Temperature range: -10º +60º C - Response sensitivity: 30 Kohm - Probe voltage: 12V AC 50 Hz - Maximum terminal cross-section: 2 x 2.5 mm². - Use of contacts: * AC1 : 10 A - 250V AC * AC11 : 2,5 A - 230V AC * DC1 : 1 A - 250V DC * DC11 : 5 A - 24V DC - Approx. average weight: 140g
