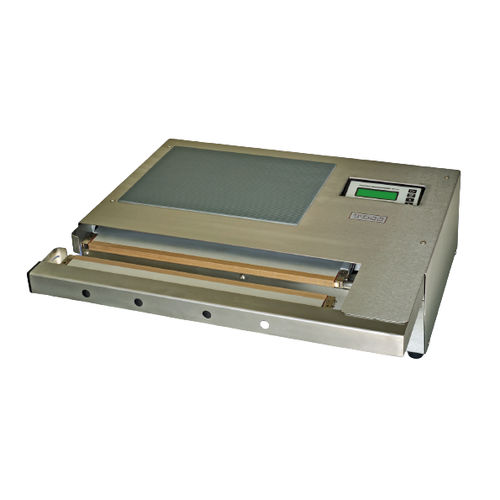

Manual heat sealer 772-H

for bag closingfilm

Film welding unit type 772-H for vertical feeding and sealing of bags, e.g. with fluids or flow line goods Our model 772-H Sealing Unit is a completely new concept in manual thermoplastic bag sealing. This kind of construction is especially suitable for bags filled with liquids or run products.  sealing zone 410 x 4 mm (8 mm as option)  horizontally mounted heating rails, both-side heated  electronic temperature control of heating elements to ensure constant seam integrity and longer endurance of the sealing components  all parameters easily adjustable via menu field  illuminated LCD-display  heating rails equipped with linear equalizer heads on both sides  plug connections to enable quick heatseal band replacement  temperature controlled cooling phase  mechanical clamping protection (no danger of injuries)  linear motor-driven closing operation  brushed stainless steel housing  foot switch  power supply: 230 V / 60 Hz  dimensions (width x height x depth): 620 x 198 x 548 mm  weight: 39 kg Options:  bag counter  welding looks like sealing  original closing with logo  RS-232 interface with software for data log This unit with its rugged construction is usable in your manufactory, test centre or production areas. Special version by request of the customer.
