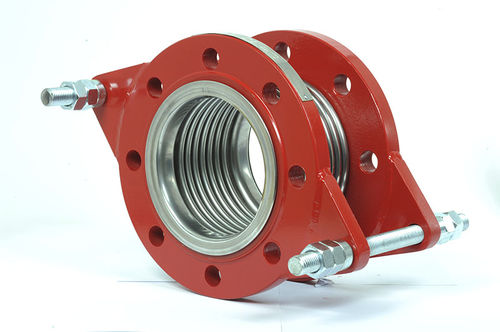

Metal pipe expansion joint
roundflangeaxial

metal pipe expansion joint
metal pipe expansion joint
Add to favorites
Compare this product


Characteristics

Material
metal
Configuration
round
Installation system
flange
Expansion axis
axial
Applications
wastewater
Nominal diameter

Max.: 1,200 mm
(47.24 in)

Min.: 25 mm
(0.98 in)

Operating temperature

Max.: 550 °C
(1,022 °F)

Min.: -90 °C
(-130 °F)

Pressure

6 bar, 10 bar, 16 bar, 40 bar, 64 bar
(87 psi, 145 psi, 232.1 psi, 580.2 psi, 928.2 psi)

Description

Vibration is the one of the big problems and has to be solved to avoid problems in the system. By using Totflex Metal Bellows Vibration Absorber Expansion Joints you can compensate vibrations caused by the vibrating equipment in the system. Metallic Bellows Vibration Absorber Expansion Joints are also absorbing the noise in the system. At high temperatures, at different flow medias and at high pressures the Vibration Absorber Expansion Joints are suitable solution. Advantages of Totflex Vibration Absorbers; Prevent pump damages by reducing the tension in the pipeline Reducing space by having compact design Absorbing vibration and noise in pump, compressor, engine and burner connections Providing flexibility to the system in order to maintain operating conditions Application area of the Totflex Vibration Absorbers; Inlet and outlet of the Pump and Compressor Connections Engine and Burner Applications Gas, Water and Wastewater Systems Water Pipelines Heaters, Climate Control Systems, Fans, Heat Recovery Systems Domestic Installations, Industrial Plants and Chemical Facilities Water Pipelines Hot Air Pipelines Drainage Systems Power Machines Marine Applications Technical Futures Bellow Material - Stainless Steel AISI 304 (Opt. AISI 316, AISI 321) Flange Material - Carbon Steel St37.2 (Opt. AISI 304, AISI 316) Tie Rod Material - Carbon Steel St37.2 (Opt. AISI 304, AISI 316) Nut Material - Carbon Steel (Opt. Stainless Steel) Connection Types - Loose Flange
