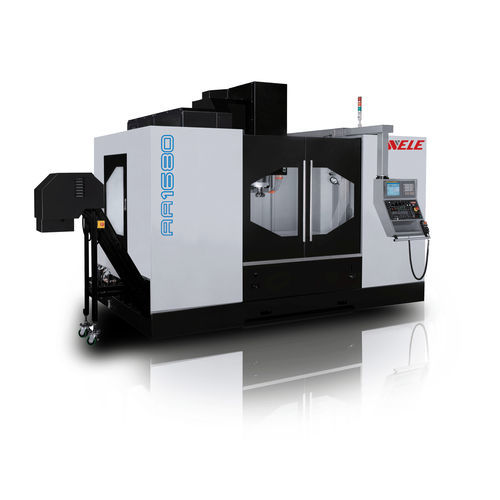

3-axis CNC machining center AA1680verticalfor aluminumfor steel
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum, for steel
- Spindle mount
- CAT50
- Number of tool stations
- 40 tools, 60 tools
- Applications
- heavy-duty
- Other characteristics
- high-speed, high-performance
- X travel
1,600 mm
(62.99 in)- Y travel
800 mm
(31.5 in)- Z travel
800 mm
(31.5 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Power
22 kW, 26 kW
(29.91 hp, 35.35 hp)- Table load capacity
2,000 kg
(4,409 lb)- Weight
16,000 kg
(35,273.96 lb)- Overall length
5,516 mm
(217.2 in)- Overall width
4,374 mm
(172.2 in)- Overall height
3,378 mm
(133 in)
Description
The AA1680 is a heavy-duty vertical machining center that features four Y-axis box guideways, a Meehanite cast iron base, and a high-performance spindle.
