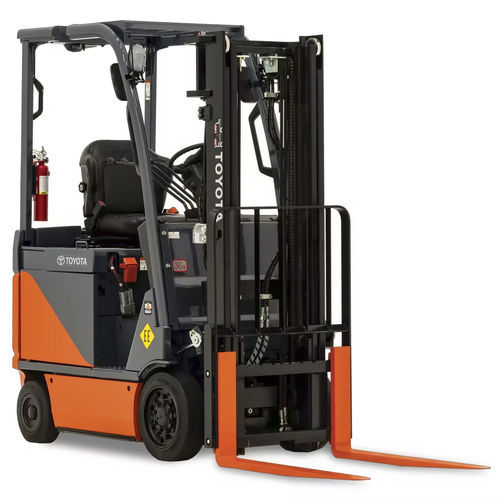

Electric forklift 8FBCU series
ride-onindoorfor the food industry

electric forklift
electric forklift
electric forklift
electric forklift
electric forklift
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, for the food industry, for the beverage industry, for warehouse, indoor
Other characteristics
4-wheel, compact, cushion tire, medium-load
Carrying capacity

Max.: 6,500 lb
(2,948.4 kg)

Min.: 3,000 lb
(1,360.8 kg)

Lifting height

Max.: 278 in

Min.: 80 in

Overall width

37 in, 41.9 in, 43.7 in

Load center distance

15.7 in, 16.7 in, 17.7 in

Weight without load

Max.: 8,130 lb
(3,687.7 kg)

Min.: 4,930 lb
(2,236.2 kg)

Axle loading with maximum load front

Max.: 15,420 lb
(6,994.4 kg)

Min.: 8,360 lb
(3,792 kg)

Axle loading with maximum load rear

Max.: 2,230 lb
(1,011.5 kg)

Min.: 1,310 lb
(594.2 kg)

Axle loading without load front

Max.: 4,080 lb
(1,850.7 kg)

Min.: 2,830 lb
(1,283.7 kg)

Axle loading without load rear

Max.: 7,170 lb
(3,252.3 kg)

Min.: 3,890 lb
(1,764.5 kg)

Track width front

31.3 in, 35 in, 35.8 in

Track width rear

32.3 in, 36 in

Height of mast when lowered

83.1 in, 83.3 in

Free lift

5.3 in, 5.7 in, 6.1 in

Overall height with mast raised

179.1 in, 179.3 in, 179.5 in, 179.7 in

Height to top of overhead guard

88 in

Length to fork face

Max.: 91.3 in

Min.: 79.9 in

Ground clearance under mast with load

2.6 in, 2.8 in, 3 in

Ground clearance at center of wheelbase with load

3.1 in, 3.9 in

Turning circle radius

Max.: 78.7 in

Min.: 66.3 in

Travel speed

Max.: 11.5 mph
(18.5 km/h)

Min.: 9 mph
(14.5 km/h)

Lifting speed

Max.: 720 mm/s

Min.: 240 mm/s

Lowering speed

500 mm/s, 524 mm/s, 527 mm/s

Rated drawbar pull

Max.: 1,510 kgf

Min.: 260 kgf

Gradeability

Max.: 25 %

Min.: 17 %

Rated output

8.5 kW, 10.8 kW, 13.2 kW, 14.8 kW, 18 kW
(11.6 hp, 14.7 hp, 17.9 hp, 20.1 hp, 24.5 hp)

Maximum operating pressure

2,580 psi

Description

The Toyota Core Electric Forklift is an ideal compact four-wheel electric lift truck solution for most indoor and warehouse applications. The Core Electric Forklift is capable of moving almost any load while maintaining the ability to operate in spaces as small as 11 feet wide fully. A Toyota-designed and built AC motor provides new levels of performance, efficiency, and reliability to maximize your productivity and return on investment. Performance Indoor Power Player Toyota’s Core Electric Forklift is big on small-space productivity. This forklift can carry up to 6,500 pounds and lift as high as 23 feet. When the going gets tight, the Core Electric gets going. More comfort equals greater productivity and that’s the driving force behind Toyota’s Core Electric’s operator compartment — a ergonomically designed to maximize efficiency. With intuitive controls, power steering for smooth responsiveness and vibration dampening reduces operator fatigue. A memory tilt steering column and seat adjustments accommodate operators of all sizes. And a heavy-duty non-slip floor mat minimizes noise, heat, and vibration. Electric Forklift Ergonomics Toyota’s Core Electric Forklift four-way adjustable full-suspension seat means a wider seat for operators with no hip constraints for easy entry and exit. The hydrostatic (on-demand) power steering will provide a smooth, responsive operation while isolating vibration and shock. Dual operator assist grips give operators a lower, wide step for easy forklift entrance and exit from both sides.
