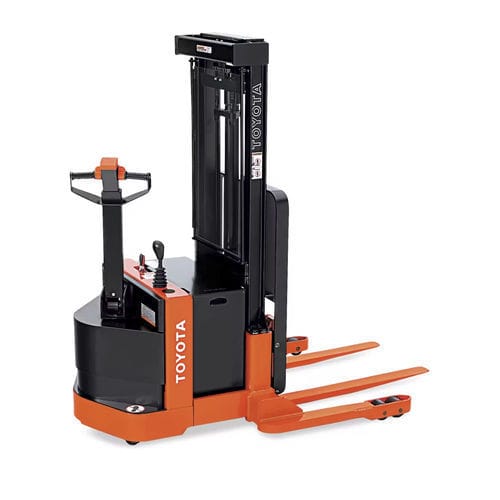

Electric stacker truck 6BWS series
walk-behind24 Vtransport

Electric stacker truck - 6BWS series - Toyota Industrial Equipment - walk-behind / 24 V / transport
Electric stacker truck - 6BWS series - Toyota Industrial Equipment - walk-behind / 24 V / transport
Electric stacker truck - 6BWS series - Toyota Industrial Equipment - walk-behind / 24 V / transport - image - 2
Electric stacker truck - 6BWS series - Toyota Industrial Equipment - walk-behind / 24 V / transport - image - 3
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
walk-behind
Voltage
24 V
Applications
transport, for pallet, for industrial applications
Other characteristics
straddle, counterbalanced, steel
Carrying capacity

2,200 lb, 3,000 lb, 4,000 lb
(997.9 kg, 1,360.8 kg, 1,814.4 kg)

Lifting height

Min.: 100 in

Max.: 189 in

Free lift

6 in, 12 in

Height of mast when lowered

83 in

Height of mast when raised

172 in, 176 in

Overall width

Min.: 40 in

Max.: 58 in

Fork width

4 in

Fork length

42 in

Fork thickness

1.5 in, 1.75 in

Turning circle radius

60.8 in, 65.1 in

Battery capacity

330 Ah, 650 Ah

Motor power traction

900 W
(1.224 hp)

Motor power lifting

4.8 ch
(4.8 hp)

Travel speed

Min.: 2.6 mph
(4.18 km/h)

Max.: 2.9 mph
(4.67 km/h)

Lifting speed

Min.: 137 mm/s

Max.: 249 mm/s

Weight

2,450 lb, 2,585 lb, 2,840 lb
(1,111.3 kg, 1,172.54 kg, 1,288.2 kg)

Description

When a traditional forklift isn’t necessary but you need to lift product above a second-tier rack, the Toyota Industrial Stacker is a cost-efficient, easy-to-use solution. With top-of-the-line durability and long-run performance, the Industrial Stacker is an economical complement to nearly any forklift fleet. UL-E Approved High-Visibility Mast Performance Industrial Strength Stacking Toyota’s Industrial Walkie Stacker stacks up to the competition. With the ability to lift loads up to 4,000 lbs. and up to 189 inches high, this lift is the perfect pick when you need to navigate high shelving and narrow aisles. Top-line durability and an operator-friendly ergonomic design make your warehouse or distribution center more productive — shift after shift, year after year. Everyday High Performer Toyota’s Industrial Walkie Stacker comes with a 24-Volt electrical system along with a programmable controller that allows the operator to easily and comfortably perform each task at the touch of a button. Its SepEx® drive motor and fully programmable drive system make light-duty stacking easy and efficient.
