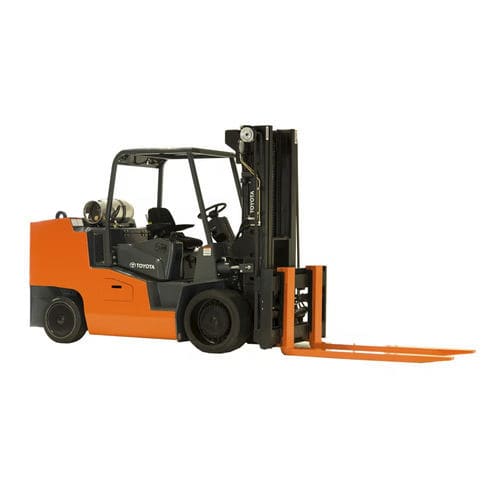

Heavy-duty forklift THDC series
LPGride-onfor warehouse

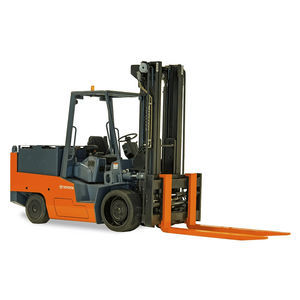

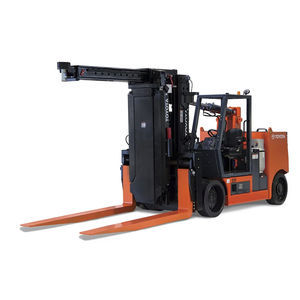

heavy-duty forklift
heavy-duty forklift
heavy-duty forklift
heavy-duty forklift
Add to favorites
Compare this product


Characteristics

Motor type
LPG
Operator
ride-on
Applications
for warehouse, pallet, for coils
Other characteristics
counterbalanced, heavy-duty, for heavy loads, cushion tire
Carrying capacity

18,000 lb, 22,000 lb
(8,164.7 kg, 9,979 kg)

Lifting height

Max.: 327 in

Min.: 69 in

Overall width

60.7 in

Load center distance

25 in, 25.8 in

Weight without load

25,400 lb, 29,900 lb, 30,100 lb, 30,800 lb
(11,521.2 kg, 13,562.4 kg, 13,653.1 kg, 13,970.6 kg)

Axle loading with maximum load front

40,650 lb, 44,620 lb, 48,460 lb, 49,370 lb
(18,438.5 kg, 20,239.3 kg, 21,981.1 kg, 22,393.9 kg)

Axle loading with maximum load rear

2,750 lb, 3,430 lb, 3,440 lb, 3,480 lb
(1,247.4 kg, 1,555.8 kg, 1,560.4 kg, 1,578.5 kg)

Axle loading without load front

11,620 lb, 12,710 lb, 13,620 lb, 13,670 lb
(5,270.7 kg, 5,765.2 kg, 6,177.9 kg, 6,200.6 kg)

Axle loading without load rear

13,780 lb, 17,180 lb, 17,190 lb, 17,430 lb
(6,250.5 kg, 7,792.7 kg, 7,797.3 kg, 7,906.1 kg)

Track width front

46.3 in

Track width rear

47.8 in

Height of mast when lowered

98 in

Overall height with mast raised

156.1 in, 166 in

Height to top of overhead guard

88.9 in

Length to fork face

Max.: 135.7 in

Min.: 123.8 in

Ground clearance under mast with load

3.8 in

Ground clearance at center of wheelbase with load

4.3 in

Turning circle radius

107.6 in, 115.7 in, 118.5 in

Travel speed

14.3 mph
(23 km/h)

Lifting speed

Max.: 345 mm/s

Min.: 234 mm/s

Lowering speed

Max.: 229 mm/s

Min.: 178 mm/s

Rated drawbar pull

Max.: 58.8 kgf

Min.: 31 kgf

Rated output

110 ch
(110 hp)

Maximum operating pressure

2,250 psi

Oil flow

100 l/min, 110 l/min
(26.4 us gal/min, 29.1 us gal/min)

Description

The High-Capacity IC Cushion Forklift is a versatile multi-tasker in a warehouse or manufacturing facility. Need to lift large pallets full of heavy components? The High-Capacity Cushion has you covered. With its ability to lift up to 22,000 lbs. you’ll have those pallets of metal coils moving in no time. Have a paper plant with larger than normal rolls? The High-Capacity Cushion can come customized with a roll clamp to make those operations a cinch. 12-Volt Electrical System Dana 3-Speed Power Shift Transmission Performance Lift More Indoors The High-Capacity Cushion Forklift is designed to help solve your toughest indoor capacity challenges while maintaining high visibility and maneuverability. Designed with a Dana Transmission with three forward reverse speeds, a V6 engine, and an engine diagnostics and support system, this indoor workhorse is built to last. Built For Heavy Duty Tasks Toyota’s High-Capacity Cushion Forklift comes with a 4.3L V6 LP Engine along with a Dana 12000 Transmission. This product comes with a drum-type braking system, heavy duty planetary drive axle, 48” hook-type forks, and independent brake and inching pedals. The High-Capacity Cushion Forklift also comes with mast-mounted LED headlights for increased brightness and visibility.
