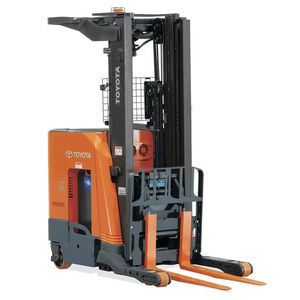

Multi-directional reach truck RF1-MD1X45
electricstand-onnarrow-aisle

Multi-directional reach truck - RF1-MD1X45 - Toyota Industrial Equipment - electric / stand-on / narrow-aisle
Multi-directional reach truck - RF1-MD1X45 - Toyota Industrial Equipment - electric / stand-on / narrow-aisle

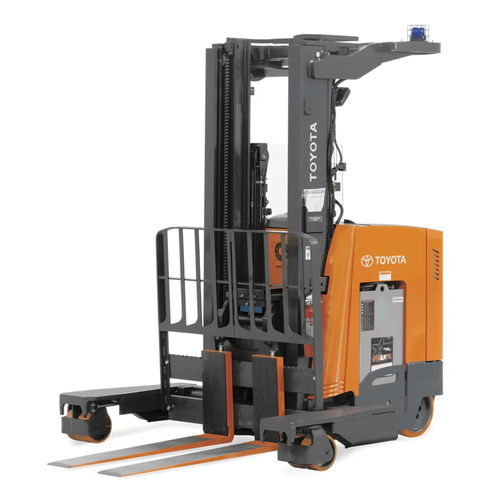

Multi-directional reach truck - RF1-MD1X45 - Toyota Industrial Equipment - electric / stand-on / narrow-aisle - image - 2
Multi-directional reach truck - RF1-MD1X45 - Toyota Industrial Equipment - electric / stand-on / narrow-aisle - image - 3
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
stand-on
Applications
handling, for warehouse, narrow-aisle
Other characteristics
compact, multi-directional
Carrying capacity

4,500 lb
(2,041.2 kg)

Lifting height

268 in

Load center distance

24 in

Weight without load

5,650 lb
(2,562.8 kg)

Height of mast when lowered

118 in

Free lift

69 in

Overall height with mast raised

304 in

Length to fork face

Max.: 61.3 in

Min.: 56.3 in

Ground clearance at center of wheelbase with load

2 in

Turning circle radius

82.5 in, 84.5 in, 87.5 in

Travel speed

7 mph
(11.3 km/h)

Gradeability

7 %

Rated output

7.1 ch
(7.1 hp)

Description

Toyota's Multidirectional Reach Truck is an innovative alternative to traditional material handling, specifically designed to handle wide, bulky loads. Articulating load wheels allow the forklift to travel horizontally, permitting compact travel and stacking wide loads in narrow aisles without the need to turn. The ability to travel both parallel or perpendicular to racking saves you time and space while increasing productivity. Multifunction Control Handle Articulating Load Wheels for Horizontal Travel Performance Wide Loads: Handled When it comes to warehousing, wide loads and narrow aisles typically don’t mix. Stacking products like lumber, pipe, or carpet at right angles necessitates wider aisles that can hamper your storage density and productivity. Enter Toyota’s Multidirectional Reach Truck with its articulating load wheels. Operators can easily control and view load wheel placement and travel direction using the operator’s display with directional and mode indicator lights. Combined with the easy-to-use multifunction control handle and open view mast, navigating wide loads through your bustling warehouse has never been easier. Moving from pick to pick as quickly and efficiently as possible is the name of the game, and the Multidirectional Reach Truck delivers. Its powerfully efficient AC drive and lift motors offer superior acceleration, travel, and lift/lower speeds to maximize throughput while minimizing downtime.
